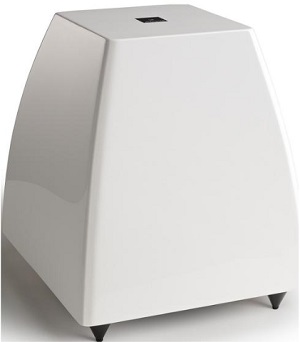

DSW.2 Digital Active Subwoofer

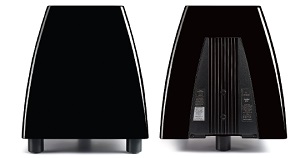

The DSW.2 is designed to provide deep bass in rooms where a compact loudspeaker is required. Featuring a downward-firing woofer, this design tapers at the top reducing the visual impact on its surroundings. All of the connecting cables, SpeakerLink and Power, attach at the bottom of the cabinet, allowing for discreet installations.
The DSW.2 provides deep and impactful bass that will perfectly play its part in a two-channel or complete surround-sound set-up made up of any of our Digital Active DSP Loudspeakers.
The DSW.2 Digital active Subwoofer can integrate seamlessly into many installations that
include meridian loudspeakers. Whether used on its own or in multiples, it delivers deep,
room-filling bass with control and accuracy.
A new long-throw, 12" drive-unit with a massive motor system, paired with a highly-efficient,
class-D amplifier, means that the DSW.2 is capable of delivering high levels of sound pressure
with precision. its unique and extremely strong cabinet has been specifically tailored to the
drive-unit to eliminate vibrations and allow the loudspeaker to reproduce music accurately at
high power levels.
These features, combined with its elegant form-factor and meridian's suite of on-board
technologies, make the DSW.2 the perfect subwoofer in any meridian system.
Features meridian’s unique enhanced
Bass alignment (eBa) technology where
bass, mid and treble all reach you at the
same time, in perfect alignment.
Low-distortion amplifier with a high
dynamic range capable of producing 600W
of power giving a clean and accurate sound.
High-power, long-throw 12in driver
combined with class-D amplifier
for maximum performance with
complete control.
Ideal for supplementing the bass response
of any meridian DSP loudspeaker and for
the playback of lFe material.
Music and movie modes for optimal
performance.
Designed to blend seamlessly with
other meridian loudspeakers in both
stereo and surround-sound applications.
Multiple installation applications
powered by meridian’s unique Design
and Specification Service.
v
Meridian Speakerlink input and output
connections for direct connection into a
DSP loudspeaker or controller.
Technical Specifications:-
AUDIO INPUTS
Meridian SpeakerLink connector (RJ45)
AUDIO OUTPUTS
Meridian SpeakerLink connector (RJ45)
PERFORMANCE
Overall distortion typically < 0.02%
AMPLIFIERS
1 x 600W* Class-D amplifier
BASS DRIVERS
1 x 12in long-throw bass driver, facing downward
CONTROLS
Channel selector switch for channel(s) 1, 1+2 or 2Rocker switch selects left-centre-right channel operation
LED indicator shows power status
*Capable of producing over 600W RMS on music or movie transients
DIMENSIONS / WEIGHT:
HEIGHT : 445mm [17.5in] (Height on standard feet (recommended for use on a carpeted floor))
450mm [17.7in] (Height on standard feet plus rubber shock absorber (recommended for use on a hard floor surface))
WIDTH AT BASE: 380mm [15in]
DEPTH: AT BASE 430mm [17in]
WEIGHT: 22kg [48.4lbs]
POWER
IEC mains connector - 550W max
