Meridian's most powerful reference two channel amplifier has been designed and built to deliver the best possible Hi-Res audio performance from any high-quality passive loudspeaker system. Its low-feedback construction provides ultra-low distortion, ensuring an unparalleled level of clarity and transparency across the audible range.
Bridgeable to over 1.5Kw, the Meridian 857 features a totally new design for a Meridian power amplifier, borne out of extensive research, experience and a thorough understanding of psychoacoustic principles.
KEY FEATURES:
Effortless power delivery of 500W per channel into four ohms and bridgeable to > 1.5kW mono into 4Ω.
1-100kHz frequency response -/+ 2dB – Perfect for high resolution audio.
Fan assisted cooling operating at elevated temperatures enabling silent operation in room and rack installations.
Low feedback construction provides ultra-low distortion, ensuring an unparalleled level of clarity and transparency across the audible range.
Technical Specifications:-

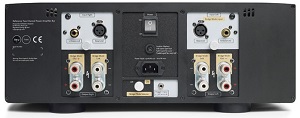

AUDIO INPUTS
Two XLR balanced inputs
Two RCA unbalanced inputs
AUDIO OUTPUTS
250W RMS into 8 Ohms per channel both channels driven
500W RMS into 4 Ohms per channel both channels driven
Bridgeable to > 1KW RMS into 8 Ohms • Bridgeable to > 1.5KW RMS into 4 Ohms
4 WBT terminals per side allow bi-wiring
CONTROL SIGNALS
Trigger input [3.5mm 5-30 VDC]
COOLING
High level of passive cooling for silent in-room running
Six variable speed fans maintain amp functionality if hostile thermal conditions encountered in rack
DISPLAY
Backlit touch sensitive logo changes colour to indicate amplifier’s status
‘Standby’ [BLUE], ‘Normal Operation’ [GREEN]’, ‘Fans Active’ [AMBER], ‘Overload’ [RED]
DIMENSIONS
HEIGHT: 132mm [5.2in] (4U high in-rack)
WIDTH: 440mm [17.32in]
DEPTH: 350mm [13.78in]
WEIGHT: Standalone: 32kg [70.5lbs]
Rack: 35kg [77.1lbs]
CONSTRUCTION
Black finish in aluminium and glass
Dedicated rack mount variant (4U high)
Custom Meridian Select colours also available
POWER
Advanced linear power supply: 100V ac 50/60 Hz | 110-120V ac 50/60Hz | 220-240V ac 50/60Hz
