SW8 - Powered Compact Subwoofer; 8-in.; 1,200 Watt
•Digital power amplifier provides high output and high efficiency, with less heat produced compared to conventional analog power amplifiers
•High power, long throw active woofer drivers feature black anodized aluminum cones which provide superior rigidity compared to conventional paper cone designs
•Dual anodized aluminum cone passive radiators provide additional driver pistonic area, and their combined output along with the main active driver equals that of a larger single active driver
•Compatible with the OmniMount 30.0 ST-MP for easy wall or ceiling-mount applications

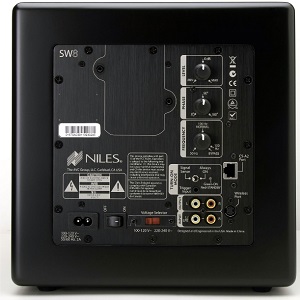

•LFE and Stereo (L/R) line-level inputs along with unbuffered stereo pass-through line outputs, which allow you to cascade the output to up to three additional subwoofers
•The C5-A2 port (RJ-45 connector) provides the option of an easier and less expensive wire run using CAT-5 cable from the A/V receiver or processor to the subwoofer via an optional Niles CAT-5 Balun adapter using standard CAT-5 wiring
•Wireless input port provides an optional input connection option for the Niles FG01672 wireless receiver
•Adjustable frequency control features a bypass position, eliminating low pass filtering within the subwoofer allowing you to fully control the bass filtering with an external receiver or preamp. The variable phase control (0°~180°) allows precise phase matching with the main speakers
•Auto Sense feature provides energy efficiency by putting the subwoofer into standby mode when no audio signals are present
Technical Specifications:-
Power Requirements Switchable 100-120v/220-240v, 50-60Hz, 2A
Woofer Size 8 (Inches)
Input Power Switchable 100-120v/220-240v, 50-60Hz, 2A
Dimensions 10-3/4" H x 10-1/2" W x 12-1/8" D (27.3 cm x 26.7 cm x 30.8 cm)
Shipping Information:-
Length 15.5 (Inches)
Width 14.7 (Inches)
Height 15.9 (Inches)
Weight 20.3 (Lbs)
Unit of Measure Each
Dual, Long-throw, side-mounted passive radiators 8"
Amplifier Power (Dynamic)1200w
Amplifier Power (RMS)300w
Fingerprint resistant, piano-like finish
CAT5 Wiring Ready
OmniMount® Ready
Wireless Ready
Shipping Weight 16.5 (7.5 kg)
