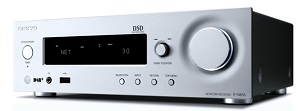

Network Stereo Receiver
Pure Audio Muscle in a Space-Saving Design
Fathomless power, lushness of detail, and ultimate convenience in a space-saving design: that’s the R-N855 in a nutshell. Serving music from connected HDDs and wirelessly from almost any audio app via Google Cast™, AirPlay®, and Bluetooth®, the receiver also features an FM/DAB+ tuner, internet radio, and inputs for turntable and CD. Peek under the hood and you’ll find a fully customized EI transformer powering Onkyo-original Switching Amplifier technology. High-grade audio circuit boards are packed with proper top-quality audio components including two huge capacitors that deliver loads of oomph and deep, powerful bass. Housed in a super-rigid full-flat metal chassis reinforced by a solid aluminum faceplate, this amp is built heavy for seriously good full-scale sound.
Specifications:-
Amplifier Section:
Power Output 70 W/Ch (4 Ω, 1 kHz, 1% THD,
2 Channels Driven, IEC)
THD+N (Total Harmonic Distortion + Noise)
0.08% (1 kHz, 8 Ω, 1 W)
Input Sensitivity and Impedance
200 mV/47 kΩ (Line)
3.5 mV/47 kΩ (Phono MM)
Rated RCA Output Level and Impedance
200 mV/2.2 kΩ (Line Out)
Phono Overload 70 mV (MM, 1 kHz, 0.5%)
Frequency Response 5 Hz–60 kHz +1 dB/-3 dB (Direct)
Tone Control ±6 dB, 100 Hz (Bass)
±6 dB, 10 kHz (Treble)
Signal-to-Noise Ratio 106 dB (Line, IHF-A)
80 dB (Phono MM, IHF-A)
Speaker Impedance 4 Ω–16 Ω
Tuner Section:
Tuning Frequency Range
FM FM 87.5 MHz–108 MHz
FM Preset Memory 40 Stations
General:
Power Supply AC 220–230 V~, 50/60 Hz
Power Consumption 60 W
Standby Power Consumption
0.2 W
Dimensions (W x H x D) 275 x 87.7 x 283.2 mm
Weight 6.1 kg
CARTON
Dimensions (W x H x D) 442 x 196 x 365 mm
Weight 8.0 kg
Supplied Accessories
• Indoor FM/DAB+ antenna • Instruction manual • Remote controller
• AC power cord • AAA (R03) batteries x 2*
