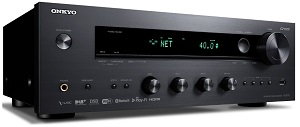

Onkyo TX-8270 - Network Stereo Receiver
Stereo Hi-Fi Amp Gets You Connected
Put the focus on musicality with the TX-8270, a beautifully engineered stereo amp that’s ready to play anything you throw at it. Together with line and phono inputs, there’s coaxial and optical digital, four HDMI® inputs, USB, and dual-band Wi-Fi® to support wireless audio technologies. These include DTS Play-Fi®*, Chromecast built-in*, AirPlay, Spotify®, network-attached audio, and streaming services. Built around a massive transformer, audio-grade capacitors, and discrete non-phase-shift circuitry locked into a robust chassis, this amp has high-current power to illuminate your favorite music. Enjoy versatility with easy enhancement of everyday TV entertainment, DAB+ and FM/RDS radio, and more. Paired with speakers of appropriate quality, the TX-8270 will bring a smile to your face every performance.
• 160 W/Ch Hi-Current Dynamic Audio
Amplification System
• 384 kHz/32-bit (AK4438) DAC for Hi-Res Audio
• HDMI® 4 In / 1 Out for Media Player and
TV Connection
• 5 GHz/2.4 GHz Wi-Fi® and Bluetooth®
Technology
• Chromecast built-in*1, DTS Play-Fi®*1,
AirPlay, Spotify®
• TIDAL, TuneIn, and Deezer Streaming via
Onkyo Controller App
• FM/RDS and DAB/DAB+ Radio with Quick
Recall Memory Presets
• FireConnect™ Multi-room Audio Distribution*1
ADVANCED FEATURES
• 160 W/Ch Stereo Power (6 Ω, 1 kHz, 1%, 1 Channel
Driven, IEC);
170 W/Ch Stereo Power (6 Ω, 1 kHz, 10%, 1 Channel
Driven, JEITA)
• Massive Hi-Current EI Transformer
• Non-Phase-Shift Amp Circuitry with Discrete Power
Output Stages
• Optimum Gain Volume Circuitry
• AKM 384 kHz/32-bit (AK4438) DAC
• VLSC™ (Vector Linear Shaping Circuitry)
Noise Filtering Technology
• Dual-band 5 GHz/2.4 GHz Wi-Fi® for Stable Connectivity
• Includes Chromecast built-in*1, DTS Play-Fi*1, AirPlay,
Spotify, TIDAL, TuneIn, and Deezer*2
• FireConnect™ Multi-room Network/Analog Audio
Distribution to Optional Wireless Speakers*1
• Receiver, Network Audio, and Multi-room Audio
Control via free Onkyo Controller Application for
Android™ and iOS*3
• Bluetooth Wireless Technology for Mobiles, Laptops,
and PCs (Version 4.1 + LE, Profile: A2DP v1.2,
AVRCP v1.3)
• Zone 2 Line Outs with Dedicated DAC for NET/USB
Audio Distribution
• FM/RDS and DAB/DAB+ Tuners with 40 Station Presets
• HDMI Supports HDCP 2.2, 4K/60 Hz, HDR, 3D, Audio
Return Channel, DeepColor™, x.v.Color™, LipSync,
DSD*4, DVD-Audio, Super Audio CD (SACD), and CEC
• Supports Dolby Vision™ Signal Pass-through
• Supports Hi-Res Audio via Network
(DSD 5.6 MHz*4 and 192 kHz/24-bit PCM*5)
• Decodes FLAC, WAV, ALAC, DSD*4, AIFF,
WMA Lossless, MP3, and AAC Formats Over Network
and USB
• Aluminum Front Panel and Volume Control Knob
*1 Requires a firmware update or updates TBA. *2 Availability of services may
vary with region. Please confirm before purchase. Subscription may also be
required. *3 For iOS and Android devices. Check App Store or Google Play™ for
OS and device requirements. *4 After PCM conversion. *5 Not supported over
wireless LAN or USB.

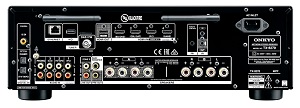

CONNECTION FEATURES
• 4 HDMI Inputs / 1 Output (4K/60 Hz / HDCP 2.2)
• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
• Gold-plated 3 Analog Audio Inputs
• Gold-plated MM Phono Input with Phono Equalizer
• Gold-plated Zone 2 Line Outs
• Gold-plated Subwoofer Pre Out
• Two Pairs of Speaker Post with Screw Knobs for
A/B Drive
• 5 V / 1 A USB Port for Audio Playback via USB Storage
Devices (Front)
• 5 V / 500 mA USB Terminal for HDMI Media Player
Power Supply (Rear)
• IR Input and Output
• LAN Input with IP Control Capability for Home
Automation Systems
• Thick, Detachable AC Power Cable
• Gold-Plated 6.35 mm Headphone Jack (Front)
ADDITIONAL FEATURES
• Graphical User Interface with Overlaid On-Screen
Display (OSD) via HDMI
• Quick Recall Preset Buttons on Front Panel
• Input Selector Knob and Physical Tone/Balance Controls
• Advanced Music Optimizer Improves Compressed Digital
Audio Quality, Including Bluetooth Audio
• Direct Mode and Double Bass Mode
• Crossover Adjustment
(40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 5 ms Steps
at 48 kHz)
• Front-panel Speaker A or B Drive Selector Button
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• Sleep Timer and Battery-free Memory Back-up
• Full-sized RI Remote Controller
• Network Standby Mode, HDMI Passthrough,
and Auto Standby
TECHNICAL SPECIFICATIONS:-
Amplifier Section:-
Power Output: 160 W/Ch
(6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
170 W/Ch
(6 Ω, 1 kHz, 10%, 1 Channel Driven, JEITA)
Dynamic Power: 240 W (3 Ω, Front)
210 W (4 Ω, Front)
120 W (8 Ω, Front)
THD+N (Total Harmonic Distortion + Noise):
0.08% (20 Hz–20 kHz, Half Power)
Damping Factor: Less than 54 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance:
200 mV/47 kΩ (Line)
Rated RCA Output Level and Impedance:
1 V/470 Ω (Subwoofer Pre Out)
Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control: ±10 dB, 90 Hz (Bass)
±10 dB, 7.5 kHz (Treble)
Signal-to-Noise Ratio: 106 dB (IHF-A, Line In, Speaker Out)
80 dB (IHF-A, Phono In, Speaker Out)
Speaker Impedance: 4 Ω–16 Ω
Headphone Output Impedance:
330 Ω
Headphone Rated Output: 80 mW (32 Ω, 1 kHz, 10%)
Tuner Section:-
Tuning Frequency Range:
FM/RDS 87.5 MHz–108 MHz
FM/DAB+ Preset Memory 40 Stations
General:-
Power Supply: AC 230 V~, 50 Hz
Standby Power Consumption:
0.15 W
No-Sound Power Consumption:
35 W
Network Standby Power Consumption:
2.8 W
Dimensions (W x H x D): 435 x 149.5 x 329 mm
Weight: 8.7 kg
CARTON
Dimensions (W x H x D) 554 X 242 X 401 mm
Weight 11.0 kg
Supplied Accessories
• Indoor FM antenna • Instruction manual • Remote controller
• AAA (R03) batteries x 2
