Musical Sound to Enrich Your Daily Life
At last, a slimline stereo solution that offers universal audio casting while adding 85 W x 85 W of musical power to any audio source... just add speakers. The TX-L20D packs high-value features into a stylish and unobtrusive amp that’s smaller than some BD decks. A wealth of music is at your fingertips courtesy Google Cast™, Spotify®, AirPlay®, and Bluetooth® wireless technologies. Select an album from a popular inbuilt streaming service, tune in to DAB+ and FM radio, or enjoy the simple pleasure of vinyl and CD with rich and powerful stereo sound. And with a single-cable HDMI® connection, you can bring TV entertainment to life with performance and usability that both sides of the couch will love.
ADVANCED FEATURES
• 85 W x 85 W (4 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
• Google Cast™*1, Wi-Fi®, AirPlay®, Spotify®, TuneIn,
Deezer, and TIDAL*2
• Bluetooth® Wireless Technology (Version 4.1+LE,
Compatibility Profile A2DP 1.2/AVRCP 1.4)
• HDMI® Supports HDCP 2.2, 4K/60p UltraHD,
4:4:4 Color Space, HDR (High Dynamic Range), BT.2020
Color, Audio Return Channel, and CEC/CEC Multilink
Control for Compatible Components
• Onkyo Controller App for iPhone®/iPod touch®*3 and
Android™ Devices*4
• FireConnect™ Wireless Multi-room Capability with
Optional Speakers*5
• 1080p Video Upscaling to 4K Resolution
• DAB+ and FM/RDS Tuners (40 FM/RDS Presets)
*1 Service enabled via firmware update TBA. *2 Some services may require a
subscription. Service availability may vary depending on region. *3 Requires iOS
8.0 or later. *4 Requires Android 4.0.3 or later. *5 FireConnect™ technology is
enabled via firmware update. Details TBA. FireConnect™-compatible speakers
required. Speakers are scheduled for release. Details TBA.
AMPLIFICATION FEATURES
• Efficient 85 W x 85 W High-Power Amplification System
• Phase Matching Bass Technology for Cohesive
Sound Reproduction
PROCESSING FEATURES
• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel,
DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD,
Dolby® Digital Plus, Dolby® Surround, DTS-HD Master
Audio™, DTS High Resolution, DTS 96/24, DTS-HD
Express, DVD-Audio, Super Audio CD, Multichannel PCM,
and CEC/CEC Multilink
• DSD Decoding (5.6 MHz) via Network, HDMI, and USB
• SACD Playback via HDMI (5.6 MHz)
• CIRRUS 32-bit Digital Signal Processor
• Listening Enhancement Modes Including Late Night Mode
and Loudness Management
• Pure Audio Mode
• Custom DSP Audio Modes for Movies, Music, and Games
• Double Bass Mode

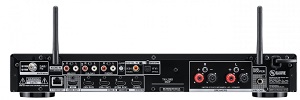

CONNECTION FEATURES
• 4 HDMI Inputs / 1 Output
• 2 Analog Audio Inputs (Rear)
• 2 Digital Audio Inputs (Optical/Coaxial)
• Subwoofer Pre-out
• USB Type-A Input (Front) for Audio Playback via
Compatible USB Memory Devices
• MM Phono Input and Equalizer for Turntable
Connection (Rear)
• Banana-plug-compatible Speaker Posts
• 3.5 mm Headphone Output (Front)
OTHER FEATURES
• Graphical User Interface and Simple Remote Controller
• Tone Control (Bass/Treble) ±10 dB for
Front L/R Channels
• A/V Sync Function (500 ms at 48 kHz in 5 ms Steps)
• Sleep Timer and Auto Power Off
• Single-line Dimmable FL Display
TECHNICAL SPECIFICATIONS
Dimensions (W x H x D) 435 x 70 x 331.5 mm
Weight 4.0 kg
CARTON
Dimensions (W x H x D) 564 x 207 x 392 mm
Weight 5.5 kg
Supplied Accessories
• Indoor FM/DAB+ antenna • Instruction manual • Remote controller
