The Smart Choice for Stress-free Surround-Sound
There’s a path to immersive surround-sound that won’t result in a messy living space, and it’s called the TX-L50. Slim, smart, and ready to fit into your existing furniture, the receiver cleans up cable clutter by integrating your players into the TV via one HDMI®, and by letting you cast music wirelessly from smartphone apps in seconds. Lush, cohesive sound transforms daily entertainment, from TV shows to LP records, thanks to responsive six-channel amplification. With the addition of a compact speaker set, cinema magic is on tap with simple playback control to help to melt stress away.
ADVANCED FEATURES
• 80 W/Ch (4 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
• Google Cast™*1, Wi-Fi®, AirPlay®, Spotify®, TIDAL*1,
Deezer*1, TuneIn, and Pandora®*2
• Bluetooth® Wireless Technology (Version 4.1+LE,
Compatibility Profile A2DP 1.2/AVRCP 1.4)
• HDMI® Supports HDCP 2.2, 4K/60p UltraHD, 4:4:4 Color
Space, HDR (High Dynamic Range), BT.2020 Color,
Audio Return Channel, and CEC/CEC Multilink Control
for Compatible Components
• Onkyo Controller App for iPhone®/iPod touch®*3 and
Android™ Devices*4
• AccuEQ Room Acoustic Calibration Adjusts Speaker
Response for Balanced and Cohesive Surround Sound
(Setup Mic Included)
• FireConnect™ Wireless Multi-room Capability with
Optional Speakers*5
• 1080p Video Upscaling to 4K Resolution
• FM/RDS Tuner with 40 Station Presets
*1 Service enabled via firmware update TBA. *2 Pandora® available in
Australia and New Zealand only. Some services may require a subscription.
Service availability may vary depending on region. *3 Requires iOS 8.0 or later.
*4 Requires Android 4.0.3 or later. *5 FireConnect™ technology is enabled
via firmware update. Details TBA. FireConnect™-compatible speakers required.
Speakers are scheduled for release. Details TBA.
AMPLIFICATION FEATURES
• Efficient Six-Channel Digital Amplification System with
Independent Power Supply and Discrete Output Stages for
Clear and Dynamic Performance
• Supports 192/24 and DSD Decoding for
Hi-Res Audio Playback
PROCESSING FEATURES
• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel,
DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, Dolby®
Digital Plus, Dolby® ProLogic™ II, Dolby® Surround,
DTS-HD Master Audio™, DTS High Resolution, DTS
96/24, DTS-HD Express, DVD-Audio, Super Audio CD,
Multichannel PCM, and CEC/CEC Multilink
• DSD Decoding (2.1-Channel/5.6 MHz, Multichannel
2.8 MHz) via Network, HDMI, and USB
• SACD Playback via HDMI
(2.1-Channel/5.6 MHz, Multichannel 2.8 MHz)
• CIRRUS 32-bit Digital Signal Processor
• Listening Enhancement Modes Including Direct Mode,
Late Night Mode, and Loudness Management
• Custom DSP Audio Modes for Movies, Music, and Games
• CinemaFILTER™ Audio Mode
• Double Bass Mode

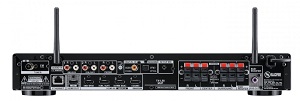

CONNECTION FEATURES
• 4 HDMI Inputs / 1 Output
• 2 Analog Audio Inputs (Rear)
• 2 Digital Audio Inputs (Optical/Coaxial)
• Subwoofer Pre-out
• USB Type-A Input (Front) for Audio Playback via
Compatible USB Memory Devices
• MM Phono Input and Equalizer for
Turntable Connection (Rear)
• Direct Clip-type Speaker Terminals
• 3.5 mm Headphone Output (Front)
OTHER FEATURES
• Graphical User Interface and Simple Remote Controller
• Tone Control (Bass/Treble) ±10 dB for
Front L/R Channels
• A/V Sync Function (500 ms at 48 kHz in 5 ms Steps)
• Sleep Timer and Auto Power Off
• Single-line Dimmable FL Display
TECHNICAL SPECIFICATIONS
Power Supply AC 100–240 V~, 50/60 Hz
Power Consumption 60 W
Standby Power Consumption
0.38 W
Dimensions (W x H x D) 435 x 70 x 325.5 mm
Weight 4.0 kg
CARTON
Dimensions (W x H x D) 564 x 207 x 392 mm
Weight 5.5 kg
Supplied Accessories
• Indoor FM antenna • Setup microphone for AccuEQ
• Instruction manual • Remote controller • AAA (R03) batteries x 2
