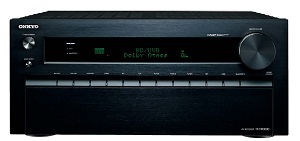

Demand the Ultimate in 11.2-Channel Home Cinema
With 11.2-channels of Onkyo power and the world’s most advanced A/V processing, the TX-NR3030 serves up revolutionary Dolby Atmos®
surround-sound complete with liquid 4K video at 60 frames per second. Add in-ceiling speakers to augment a 5.2, 7.2, or 9.2 surround setup to
unlock the full potential of this game-changing format, which creates a plane of sound over the listener’s head. As well as more accurately locating
surround effects mixed for discrete channels, Dolby Atmos moves the sound around your theater more realistically to place you in the center
of the action. Connectivity extends from HDCP 2.2-ready HDMI® through to balanced XLR pre-outs, while onboard Wi-Fi® supplies your home
cinema with hi-res music via NAS/PC and limitless streaming from your smartphone. Onkyo has engineered the TX-NR3030 from faceplate to
speaker posts for audiophile performance, with three transformers, separate amp and processing blocks, and seven top-of-the-line 32-bit Burr-
Brown D/A converters. Whether used as a hub for housewide HD audio and video, or as the heart of a Dolby Atmos-powered home cinema, the
TX-NR3030 rewards with an emotionally uplifting performance every time.
ADVANCED FEATURES
• Supports New Dolby Atmos® Surround Format for Exciting
Multiplex Sound
• THX® Select2™ Plus Certified for Cinema-Reference Sound Quality
• ISF (Imaging Science Foundation) Video Calibration for
Optimal Video Performance
• DTS Neo:X™ Upmixing and Surround Modes
• Three Separate Transformers for Amplification, Audio, and
Video Processing
• Separate Processing and Amplification Block Construction
with Aluminum Heat Sink
• 11.4 Multichannel Pre-Outs, XLR Pre-Outs (Front L/R), and
18 mm-pitch RCA Pre-Outs (Front L/R)
• 4K/60 Hz-Capable HDMI® Terminals for Ultra HD
Entertainment
• Supports HDCP 2.2*1 Copy Protection for Future 4K
Streaming, Broadcasting, and Premium Studio Content
• 3 x HDMI Outputs Including Zone 2 HDMI for HD Video in a
Second Room
• Built-in Wi-Fi®-Certified Wireless LAN and Bluetooth Version
2.1 + EDR with Advanced Music Optimizer
• Internet Radio and Music Streaming Subscription Services
Included (TuneIn Radio, Pandora®, Spotify, AUPEO!, and Deezer)*2
• Play MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC,
Apple Lossless, DSD 5.6 MHz, LPCM*3, and Dolby® TrueHD via
Local Network
• Control and Stream with Free Onkyo Remote Streaming Apps
for iPod touch/iPhone*4 and Android Devices*5
• Pure Direct Analog Path Mode for Interference-Free Hi-fi
Stereo Listening
• HDMI Video Upscaling to 4K with Qdeo™ Processing
Technology by Marvell
• AccuEQ Room Calibration with Mic for Clear and Balanced
Sound
• Bi-Amping Capability, Powered Zone 2 and Zone 3, Zone 2/3
Pre/Line-Outs for Distributed Audio Playback
*1 HDCP 2.2 is supported on HDMI Input 3 and Main Out only. *2 Availability of services
depends on region. Some services may require a paid subscription and firmware update.
Availability of third-party services advertised here is accurate at the time of publication,
but may be subject to change without notice. *3 LPCM is supported via DLNA only. *4
Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models
require iOS 4.2 or later. *5 Requires Android OS 2.1 or later.
AMPLIFIER FEATURES
• 185 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC); 230
W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• WRAT (Wide Range Amplifier Technology)
• Three-Stage Inverted Darlington Circuitry
• Customized H.C.P.S. (High Current Power Supply) High-
Output Transformer, Separate Transformers for A/V Processing,
and Heavy-Duty Custom Capacitors
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
PROCESSING FEATURES
• HDMI for 4K/60 Hz Video, 3D, Audio Return Channel,
DeepColor™, x.v.Color™, LipSync, Dolby Atmos, Dolby®
TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio
CD, Multichannel PCM, and CEC
• 7 x TI Burr-Brown 192 kHz/32-bit Two-Channel D/A
Converters
• Dual 32-bit Digital Signal Processing Engines
• Whole House Mode for Synchronized Housewide Audio
• PM Bass for Deep Bass and Clear Mid-Range
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
v
CONNECTION FEATURES
• 8 HDMI Inputs (1 Front/7 Rear) and 3 Outputs
• Frontside HDMI/MHL™ for 1080p Video and Stills from
Smartphone and Tablet
• USB Port (Front) for Mass Storage Class USB Memory Audio
Playback Capability
• Component Video Switching (2 Inputs and 1 Output)
• 4 Composite Video Inputs (1 Front/3 Rear) and 2 Outputs
(Including Zone 2)
• 6 Digital Audio Inputs (3 Optical and 3 Coaxial)
• 7 Analog Audio Inputs (1 Front/6 Rear)
• Phono Input (MM) for Turntable Connection
• 4 Parallel Subwoofer Pre-Outs
• VGA Input (D-Sub, 15-pin), RS-232 Port, IR Input/Output, and
12 V Trigger Outs for Zone 2/3
v
OTHER FEATURES
v
• Overlaid HD Input Source Preview with InstaPrevue™
Technology
• Overlaid On-Screen Display (OSD) with Quick Set-Up and
Home Menu
• Hybrid Standby with HDMI Passthrough and Network
Connectivity
• Independent Crossover Adjustment for Each Channel (40/50/
60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 800 ms at 48 kHz)v
• Tone Control (Bass/Treble) for All Channels (Except Zone 2/3)
• RDS (PS/RT/PTY/TP) (European Model only)
• Aluminum Front Panel and Volume Control Knob
• Compatible with RI Dock for iPod/iPhone and AirPlay (DS-A5)
• Bi-Directional, Preprogrammed, and Customizable RI Remote
Control
