Unlock a Seamlessly Immersive Object-Audio Experience

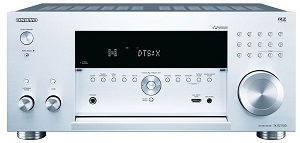

The THX®-certified TX-RZ1100 is aimed at discerning audiophiles waiting for the perfect product to deliver a no-compromises 5.2.4-channel audio
experience in their home. This extraordinary reference receiver is suited to quad in-ceiling DTS:X™- and Dolby Atmos®-ready layouts with mammoth
power to drive front and rear floorstanders with thrilling dynamism. The TX-RZ1100 leverages Onkyo-tuned high-current architecture with sophisticated
digital-switching technology to achieve sound that’s nothing short of spectacular. Add the ability to cast from most music apps to the receiver via AirPlay®,
Wi-Fi®, and Google Cast™, and to mirror any audio on wireless speakers around the home (along with powered audio and 4K video distribution) and the
case for flagship-quality entertainment becomes even more convincing.
ADVANCED FEATURES
• THX® Select2™ Plus Cinema-Reference Audio Performance
• 5.2.4-channel DTS:X™ and Dolby Atmos® Object-based
Audio Decoding
• DTS Neural:X™ Upmixes Standard 5.1 and 7.1 formats to 3D Sound
• HDMI Supports 4K/60 Hz, High Dynamic Range, 4:4:4 Color Space,
and HDCP 2.2-protected Video*1
• Zone 2 HDMI Output Distributes 4K/60 Hz Video to a Second Display
• Google Cast*2, AirPlay, Wi-Fi®, Bluetooth*3, TuneIn Radio, Pandora®,
Spotify, TIDAL*2, and Deezer*2 for App-based Audio Streaming*4
• Network/USB Audio (DSD 11.2 MHz [Stereo], 192/24 PCM, Dolby®
TrueHD, FLAC, WAV, ALAC, AAC, MP3, WMA)
• Powered Zone 2 and Powered Zone 3 Outputs for Multi-room
Analog and Digital (HDMI/Network/OPT/COAX) Audio with
Independent Volume/Tone Controls
• Whole House Mode Function
• AccuEQ Calibration with AccuReflex for Seamless Object-based,
Multichannel, and Stereo Sound (Setup Mic Included)
• FireConnect™*2 Wireless Multi-room Digital/Analog Audio Distribution
to Compatible Speakers (Sold Separately)
• 11.2 Multichannel Pre-Outs for 7.2.4-channel Object-based Audio
(Separate Stereo Amp Required)
• Remote App for iPhone/iPod touch*5 and Android™ Devices*6
*1 6G Video/HDCP 2.2 supported on HDMI inputs 1–5, Main Out, and Zone 2 Out. *2 Services
enabled via firmware update. Details TBA. *3 Bluetooth specification Version 4.1 (compatible
profile: A2DP v1.2, AVRCP v1.3) also supporting Advanced Music Optimizer. *4 Availability of
services depends on region. Some services may require a paid subscription and firmware update.
Availability of third-party services advertised here is accurate at the time of publication, but may
be subject to change without notice. *5 Compatible with iPod touch (5th generation or later) and
iPhone 4GS or later. *6 Requires Android 4.0.3 or later.
AMPLIFIER FEATURES
• 200 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
340 W/Ch (6 Ω, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
• Onkyo High-Current Digital Amplification for Smooth
Low-Distortion Power
• Customized High-Output Transformer, Custom
Audio-Grade Capacitors, Separate Transformer for Standby
• Separated Digital and Analog Circuitry to Reduce Interference
• Extruded Metal Heat Sink with Polycarbonate Cooling Fan
• Optimum Gain Volume Circuitry
• VLSC™ (Vector Linear Shaping Circuitry) Noise-free Signal Processing
for All Channels
• PLL (Phase Locked Loop) Jitter-Cleaning Circuitry for S/PDIF Audio
PROCESSING FEATURES
• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™,
x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, Dolby® Digital Plus,
Dolby® Surround, DTS:X™, DTS-HD Master Audio™, DTS 96/24,
DTS-ES, DTS Express, DTS Neural:X™, THX® Cinema/Music/Game,
DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
• Dolby Atmos®, DTS:X™, Dolby® TrueHD, and
DTS-HD Master Audio™ Decoding
• Separate 384 kHz/32-bit AK4490 Stereo DAC (Front L/R),
2 x 768 kHz/32-bit AK4458 Multichannel DACs (Surround Channels)
• Discrete 192 kHz/24-bit AK4388 Stereo DACs (x2) for
Zone 2 and Zone 3
• Multiple 32-bit Digital Signal Processing Engines
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• Direct Mode and Pure Audio Mode
CONNECTION FEATURES
• 8 HDMI Inputs (1 Front/7 Rear), Main, and Zone 2 Outputs
• Mass Storage Class USB Memory Playback Capability (Rear Input)
• 11.2 Multichannel Pre-Outs and Zone 2/3 Pre-/Line Outs
• Zone 2 and Zone 3 Powered Speaker Outputs/Bi-Amping Outputs
• Component Video Switching (2 Inputs and 1 Output) and
2 Composite Video Inputs
• 5 Digital Audio Inputs (3 Optical and 2 Coaxial) and
7 Analog Audio Inputs
• Phono Input (MM) for Turntable Connection
• Dual Subwoofer Pre-Outs
• 12 V Trigger Out (Assignable) with IR Input; Supports IP and RS232
• 6.3 mm Headphone Input
OTHER FEATURES
• Tone Controls (Bass/Treble) ±10 dB for All Channels
• Independent Crossover Adjustment for All Channels
(40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
• New Graphical Overlaid On-Screen Display (OSD) via HDMI with
Quick Setup Function
• Hybrid Standby Function with HDMI Passthrough
• 40 FM/AM and 40 Internet Radio Station Presets
• RIHD (Remote Interactive Over HDMI) for System Control
• Aluminum Front Panel and Volume Control Knob
• Simple Remote Control
DIMENSIONS AND WEIGHT
Dimensions (W x H x D) 435 x 201 x 453 mm
Weight 19.7 kg
CARTON
Dimensions (W x H x D) 565 x 325 x 547 mm
Weight 22.5 kg
