9.2-Channel Network A/V Receiver
Immense power for unparalleled speaker control

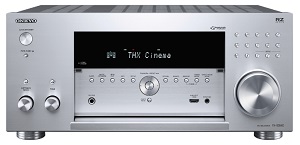

A glance at the TX-RZ840’s imposing front panel reveals a component built for one purpose: making your smile wider as the volume goes higher. Its thick chassis is loaded with custom parts tested and tuned to THX® Certified Select™ reference standards, handling massive current flows for sound you feel emotionally and physically. Beyond 3D surround supporting IMAX® Enhanced*1 content up to 11.2 channels, and a finessed touch that breathes life into stereo music, the receiver forms a hub for house-wide entertainment with Next-Generation Network Audio integrating AirPlay 2, Works with Sonos, Chromecast built-in*2, and more over 802.11ac Wi-Fi®*3. Three-zone powered D/A audio distribution is easily managed from your smartphone. With state-of-the art connectivity and custom-installation interfaces included, it’s the TX-RZ840’s visceral presence you’ll find most difficult to resist.
*1 Enabled with a future firmware update. *2 The unit may automatically download and apply an Over-the-Air software update during setup. *3 Some countries or regions have regulations that affect wireless signal strength and the use of Wi-Fi channels.
Technical Specifications:-
Amplifier Section
Power output (All channels)
215 W/Ch
(6 Ω, 1 kHz, 10% THD, 1-ch driven)
180 W/Chv
(6 Ω, 1 kHz, 1% THD, 1-ch driven, IEC)
Dynamic power 250 W (3 Ω, Front)
220 W (4 Ω, Front)
130 W (8 Ω, Front)
THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance: 200 mV rms/47 kΩ (Line), 3.5 mV rms/47 kΩ (Phono MM)v
Rated RCA output level and impedance: 1 V rms/470 Ω (Subwoofer pre-out) / 200 mV rms/470 Ω (Zone B/Zone 2 line-out)
Frequency response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone control: ±10 dB, 20 Hz (Bass) / ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio: 106 dB (Line, IHF-A) / 80 dB (Phono, IHF-A)v
Speaker impedance: 4 Ω–16 Ω
Video Section:-
Input sensitivity/output level and impedance
Video 1.0 Vp–p/75 Ω (Component Y)
0.7 Vp–p/75 Ω (Component Pb/Pr)
1.0 Vp–p/75 Ω (Composite)
Tuner Section:v
Tuning frequency range: FM 87.5 MHz–108 MHz/AM 522 kHz–1,611 kHzv
530 kHz–1,710 kHz
FM/AM preset memory 40 Stations
General:-
Power supply: AC 220–240 V~, 50/60 Hz
Power consumption: 870 W
No-sound power consumption: 75 W
Standby power consumption: 0.15 W
Dimensions (W x H x D): 435 x 201.5 x 398 mm
Weight: 14.0 kg
CARTON:
Dimensions (W x H x D) 570 x 335 x 490 mm
Weight 17.0 kg
Supplied Accessories
• Power cord
• Indoor FM antenna
• AM loop antenna
• Speaker setup microphone
• Quick Start Guide
• Remote controller
• AAA (R03) batteries x 2
