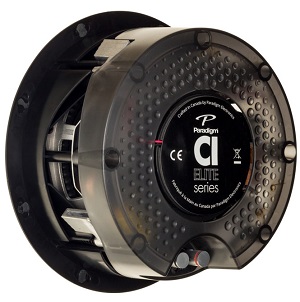

CI Elite E65-R
The Premium Custom Install Speaker.The CI Elite™ Series is Crafted in Canada and has all the technology advantages andgrille aesthetics of CI Pro™, plus oversized voice coils and X-PAL™ pure aluminum cone technologyfor the ultimate in sound performance.
◾In-ceiling round (optional square grille).
◾1" X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology.
◾6.5" X-PAL™ brushed pure-aluminum bass/midrange driver with overmolded ART™ surround and die-cast aluminum chassis.
◾1.5" high-temp voice coil for high-power handling.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design:
2-driver, 2-way in-ceiling, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
Crossover:
3rd-order electro-acoustic at 2.0 kHz
Frequency Response On-Axis:
±3 dB from 75 Hz - 22 kHz
Frequency Response 30° Off-Axis:
±3 dB from 75 Hz - 18 kHz
High Frequency Driver:
1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Mid/Bass Frequency Driver:
6.5" (16.5cm) X-PAL™ driver, overmolded Active Ridge Technology (ART™) surround, 1.5" high-temp voice coil, die-cast aluminum chassis
Low Frequency Extension:
39 Hz
Sensitivity Room / Anechoic:
92 dB / 88 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15 - 150 W
Maximum Input Power:
100 W
Finishes:
White, paintable grille, black speaker
Weight:
5.7 lbs. (2.6 kg)
Overall Dimensions:
8.875" (22.5cm) Diameter
4.25" (10.8cm) Depth
Cut-Out Dimensions:
7.75" (19.7cm) Diameter
Minimum Mounting Depth: 3.625" (9.2cm)
Depth required is the distance
between 1/2" drywall, or similar material.
