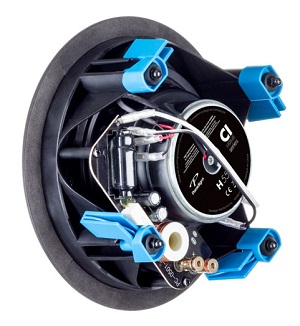

CI Home H55-R
◾In-ceiling round (optional square grille).
◾3/4" PTD™ dome tweeter.
◾5.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.
Technical Specification:-
Design:
2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Crossover:
2nd-order electro-acoustic at 3.0 kHz
Frequency Response On-Axis:
±2 dB from 75 Hz - 20 kHz
Frequency Response 30° Off-Axis:
±2 dB from 75 Hz - 18 kHz
High Frequency Driver:
3/4" (1.9cm) PTD™ dome
Mid/Bass Frequency Driver:
5.5" (14cm) mineral-filled polypropylene cone
Low Frequency Extension:
60 Hz
Sensitivity Room / Anechoic:
88 dB / 84 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15-70 W
Maximum Input Power:
40 W
Finishes:
White, paintable grille
Weight:
2.5 lbs. (1.2 kg)
Overall Dimensions:
7.75" (19.7cm) Diameter
3.375" (8.6cm) Depth
Cut-Out Dimensions:
6.75" (17.1cm) Diameter
Minimum Mounting Depth:
Depth required is the distance
between 1/2" drywall, or similar material.
2.75" (7.0cm)
