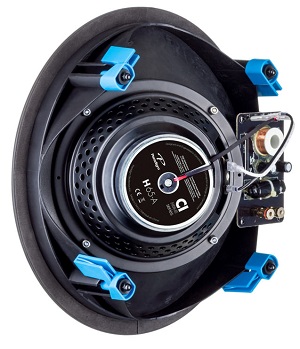

CI Home H65-A
◾In-ceiling round, 30°-Angled Guided Soundfield™ (optional square grille).
◾1" PTD™ dome tweeter.
◾6.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design:
2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield™ system, ABS chassis & mounting clamps
Crossover:
2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis:
±2 dB from 70 Hz - 20 kHz
Frequency Response 30° Off-Axis:
±2 dB from 70 Hz - 15 kHz
High Frequency Driver:
1" (2.5cm) PTD™ dome
Mid/Bass Frequency Driver:
6.5" (16.5cm) mineral-filled polypropylene cone
Low Frequency Extension:
55 Hz
Sensitivity Room / Anechoic:
89 dB / 85 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15-80 W
Maximum Input Power:
50 W
Finishes:
White, paintable grille
Weight:
4 lbs. (1.8 kg)
Overall Dimensions:
11.375" (28.9cm) Diameter
5.25" (13.3cm) Depth
Cut-Out Dimensions:
10.375" (26.4cm) Diameter
Minimum Mounting Depth: 4" (10.2cm)
Depth required is the distance
between 1/2" drywall, or similar material.
