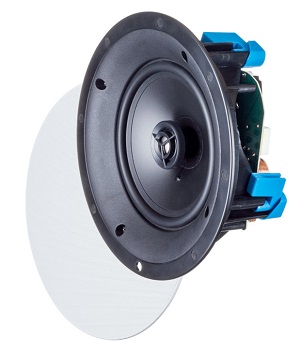

CI Home H65-R
◾In-ceiling round (optional square grille).
◾3/4" PTD™ dome tweeter.
◾6.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design:
2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Crossover:
2nd-order electro-acoustic at 3.0 kHz
Frequency Response On-Axis:
±2 dB from 70 Hz - 20 kHz
Frequency Response 30° Off-Axis:
±2 dB from 70 Hz - 18 kHz
High Frequency Driver:
3/4" (1.9cm) PTD™ dome
Mid/Bass Frequency Driver:
6.5" (16.5cm) mineral-filled polypropylene cone
Low Frequency Extension:
55 Hz
Sensitivity Room / Anechoic:
89 dB / 85 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15-80 W
Maximum Input Power:
50 W
Finishes:
White, paintable grille
Weight:
3.5 lbs. (1.6 kg)
Overall Dimensions:
8.75" (22.2cm) Diameter
3.625" (9.2cm) Depth
Cut-Out Dimensions:
7.75" (19.7cm) Diameter
Minimum Mounting Depth: 3" (7.6cm)
Depth required is the distance between 1/2" drywall, or similar material.
