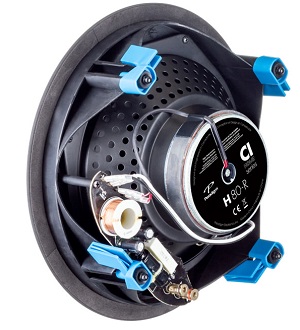

CI Home H80-R
◾In-ceiling round (optional square grille).
◾1" PTD™ dome tweeter.
◾8" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design:
2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Crossover:
2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis:
±2 dB from 60 Hz - 20 kHz
Frequency Response 30° Off-Axis:
±2 dB from 60 Hz - 18 kHz
High Frequency Driver:
1" (2.5cm) PTD™ dome
Mid/Bass Frequency Driver:
8" (20.3cm) mineral-filled polypropylene cone
Low Frequency Extension:
45 Hz
Sensitivity Room / Anechoic:
90 dB / 86 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15-90 W
Maximum Input Power:
60 W
Finishes:
White, paintable grille
Weight:
4.4 lbs. (2 kg)
Overall Dimensions:
10.375" (26.4cm) Diameter
4" (10.2cm) Depth
Cut-Out Dimensions:
9.375" (23.8cm) Diameter
Minimum Mounting Depth 3.375" (8.6cm)
Depth required is the distance
between 1/2" drywall, or similar material.
