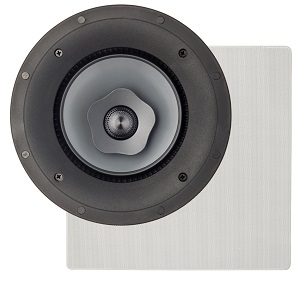

CI PRO P65-R MARINE APPLICATION SPEAKERS
Excessive moisture, corrosive salt spray, harsh UV rays and general temperature fluctuations all call for an extreme speaker; a custom install speaker designed expressly for environments where excessive moisture is an issue.
Quick Specs:
◾Santoprene Thermoplastic Elastomer surrounds
◾E-Coated Corrosion-resistant chassis and clamps
◾Conformal Coating on PCB’s and Crossover
◾Stainless-steel Micro-Perf Grille
◾Weather-resistant rubber ring with grommets secures grille to speaker
◾Stainless Steel Screws and springs
Technical Specifications:-
Design:
2-driver, 2-way in-ceiling, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
Crossover:
2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis:
±3 dB from 75 Hz - 22 kHz
Frequency Response 30° Off-Axis:
±3 dB from 75 Hz - 18 kHz
High Frequency Driver:
1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Mid/Bass Frequency Driver:
6.5" (16.5cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis
Low Frequency Extension:
41 Hz
Sensitivity Room / Anechoic:
91.5 dB / 87.5 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15-100 W
Maximum Input Power:
80 W
Finishes:
White, paintable grille, black/grey speaker
Weight:
5.7 lbs. (2.6 kg)
Overall Dimensions:
8.875" (22.5cm) Diameter
4.25" (10.8cm) Depth
Cut-Out Dimensions:
7.75" (19.7cm) Diameter
Minimum Mounting Depth: 4" (10.2cm)
Depth required is the distance
between 1/2" drywall, or similar material.
