CI Pro P80-A
Quick Specs:-

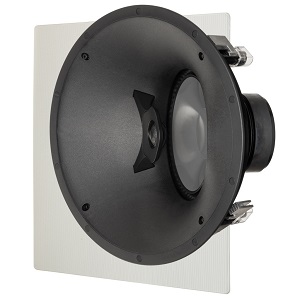

◾In-ceiling round, 30°-Angled Guided Soundfield™ (optional square grille).
◾1" X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology.
◾8" mineral-filled polypropylene bass/midrange driver with overmolded ART™ surround and die-cast aluminum chassis.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design:
2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield™ System, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
Crossover:
2nd-order electro-acoustic at 2.0 kHz
Frequency Response On-Axis:
±3 dB from 58 Hz - 22 kHz
Frequency Response 30° Off-Axis:
±3 dB from 58 Hz - 18 kHz
High Frequency Driver:
1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Mid/Bass Frequency Driver:
8" (20.3cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis
Low Frequency Extension:
39 Hz
Sensitivity Room / Anechoic:
93 dB / 89 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15-110 W
Maximum Input Power:
80 W
Finishes:
White, paintable grille, black/grey speaker
Weight:
6.6 lbs. (4.1 kg)
Overall Dimensions:
12.625" (32.1cm) Diameter
6.125" (15.6cm) Depth
Cut-Out Dimensions:
11.4375" (29.1cm) Diameter
Minimum Mounting Depth: 5.625" (14.3cm)
Depth required is the distance between 1/2" drywall, or similar material.
