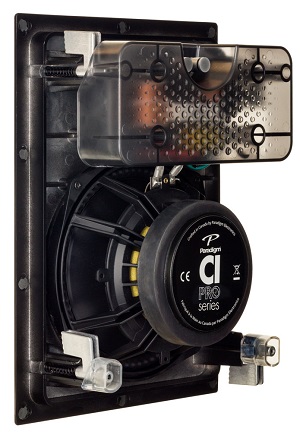

CI Pro P80-IW
◾In-wall applications.
◾1" X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology.
◾8" mineral-filled polypropylene bass/midrange driver with overmolded ART™ surround and die-cast aluminum chassis.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design:
2-driver, 2-way in-wall, SHOCK-MOUNT™ Isolation Mounting System, die-cast aluminum baffle
Crossover:
2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis:
±3 dB from 55 Hz - 22 kHz
Frequency Response 30° Off-Axis:
±3 dB from 55 Hz - 22 kHz
High Frequency Driver:
1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Mid/Bass Frequency Driver:
8" (20.3cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis
Low Frequency Extension:
30 Hz
Sensitivity Room / Anechoic:
91.5 dB / 87.5 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15-150 W
Maximum Input Power:
100 W
Finishes:
White, paintable grille, black/grey speaker
Weight:
8.6 lbs. (3.9 kg)
Overall Dimensions:
12.625" (32.1cm) Height
9.25" (23.5cm) Width
4" (10.2cm) Depth
Cut-Out Dimensions:
11.56" (29.4cm) Height
8.06" (20.5cm) Width
Minimum Mounting Depth: 3.375" (8.6cm)
Depth required is the distance between 1/2" drywall, or similar material.
