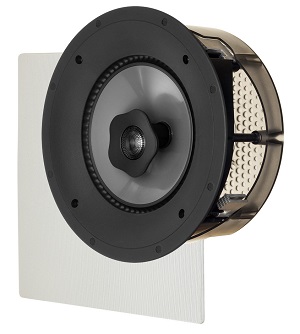

CI PRO P80-R
Quick Specs:
◾In-ceiling round (optional square grille).
◾1" X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology.
◾8" mineral-filled polypropylene bass/midrange driver with overmolded ART™ surround and die-cast aluminum chassis.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design:
2-driver, 2-way in-ceiling, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
Crossover:
2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis:
±3 dB from 64 Hz - 22 kHz
Frequency Response 30° Off-Axis:
±3 dB from 64 Hz - 18 kHz
High Frequency Driver:
1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Mid/Bass Frequency Driver:
8" (20.3cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis
Low Frequency Extension:
39 Hz
Sensitivity Room / Anechoic:
92 dB / 88 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15-110 W
Maximum Input Power:
80 W
Finishes:
White, paintable grille, black/grey speaker
Weight:
6.4 lbs. (2.9 kg)
Overall Dimensions:
10.25" (26.0cm) Diameter
4.5" (11.4cm) Depth
Cut-Out Dimensions:
9.1875" (23.3cm) Diameter
Minimum Mounting Depth: 3.875" (9.8cm)
Depth required is the distance
between 1/2" drywall, or similar material.
