Cinema Sub
When size and sound matter
While it’s true, there are tiny satellite speakers aided by small subwoofers that can be “hidden” in many living spaces, when it comes to great audiophile sound these systems had never delivered … until Cinema. For years now, their award-winning Cinema speakers have been delivering a seamless music and home theater soundstage that brings movies to life and makes music sound “live.” Rumour has it that with this new generation of Cinema speakers, sound may be even better than the movie.
Superior 8˝ High-Excursion Driver made of a durable reinforced polymer composite that in concert with the superior suspension system and motor/magnet structure allow the cone to travel farther while maintaining effective control.
Built-In High-Current, Discrete Output Amplifier: 300 watts Dynamic Peak / 100 watts RMS Sustained.
Dual Ported Design for even and articulate response.
Amplifier Controls:
Auto On / Standby / Soft Clipping
Subwoofer Cut-Off Frequency
Sub / Sat Phase Switch – 0° or 180°

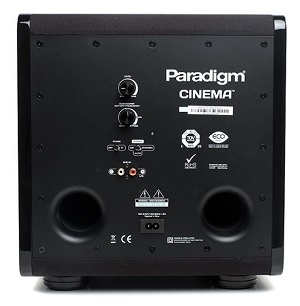

Inputs:
Two, line level
Two aesthetic placement options … gloss side up or cloth side up. Includes four easy-to-install feet.
Technical Specifications:-
Design:
Single driver, bass reflex, high-velocity low-turbulence resitive ports, built-in amplifier, flexible positioning: gloss side up or cloth side up with feet
Amplifier:
300 watts Dynamic Peak; 100 watts RMS Sustained
Amplifier Features:
Auto-on; standby; soft clipping
Low Pass Filter Frequency:
Variable 35 Hz - 150 Hz; Bypass Option
Low Frequency Driver:
210-mm (8 in) high-excursion reinforced co-polymer
Low Frequency Extension:
32 Hz (DIN)
Sub / Sat Phase Alignment:
Variable 0° - 180°
Impedance:
10k ohms
Finishes:
Cloth with Gloss Black
Inputs:
Two RCA (L/R-Mono) for L/R lineout or Sub-Out/LFE-Out of receiver/processor or other line-level source
Weight:
21.4 lbs. (9.7 kg)
Dimensions HxWxD:
13.4375" × 12.6875" × 12.6875"
(34.1cm × 32.2cm × 32.2cm)
