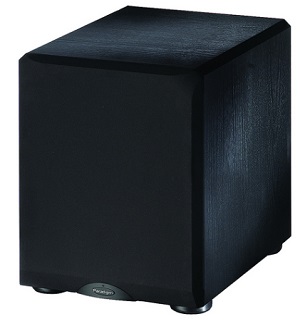

DSP-3100
Big Bass for a Small Space
High-power DSP Series subwoofers are the result of Paradigm’s multi-year R & D effort to achieve exceptional high performance while accommodating the growing desire for installation flexibility. Not everyone wants a high-performance subwoofer on full display, so models are front-firing and front-ported with removable grilles, making them ideal for “hidden” installations. For those who want it all … exceptional high performance (including the sonic benefits of digital signal processing!), a smaller footprint, flexible placement options and killer price points, DSP subwoofers fit the bill.
Control Facilities:
• Auto On/Off
• Subwoofer Level
• Subwoofer Cut-Off Frequency (continuously variable 35 Hz – 150 Hz);
Bypass Option
• Sub/Sat Phase Alignment (0° to 180°)
• USB Port/PBK Interface
Input Facilities:
• Line-level Inputs
Advanced High-Power Class-D™ Amplifiers deliver massive amounts of high-current power with minimal distortion. 600 watts Dynamic Peak / 200 watts RMS.
Forward-Firing Drivers with Advanced CAP™ Carbon / Aramid-Fiber Polypropylene Cones. Advanced cone material combines exceptional stiffness/low mass with excellent internal damping for tremendous freedom from unwanted resonances.
Advanced Suspension Design and Large Magnet Structures encourage extended cone excursion while maintaining superb control over cone movement.
High-Efficiency Dual-Ported Design. High-velocity low-noise ports with critically flared openings serve to reduce turbulence distortion. Front-ported design accommodates installation flexibility.
Removable Grilles with AVS™ Airflow Ventilation System allow release of the enormous air pressure generated by these high-output designs.
Acoustically Inert MDF Enclosures serve to limit unwanted panel resonances and vibrations, ensuring clean, clear and very articulate bass performance.
Technical Specifications:-
Design:
Single driver, bass-reflex, dual high-velocity low-turbulence resistive ports, built-in amplifier, USB Port / PBK Interface
Amplifier:
600 watts Dynamic Peak / 200 watts RMS
Amplifier Features:
Auto-On / Off, soft clipping
Room Correction:
pbk-1
Low Pass Filter Frequency:
Variable 35 Hz - 150 Hz; Bypass Option
Low Frequency Driver:
255-mm (10 in) CAP™ cone, ceramic / ferrite magnet, 50-mm (2 in) 4-layer voice-coil, AVS™ die-cast heatsink chassis
Low Frequency Extension:
24 Hz (DIN)
Sub / Sat Phase Alignment:
Variable 0° - 180°
Finishes:
Black Ash
Inputs:
RCA (L/R-Mono) for L/R Line-Out or Sub-Out / LFE-Out of receiver, processor or other line-level source
Weight:
40 lbs. (18.2 kg)
Dimensions HxWxD
Includes grilles and feet:
16.25" × 12.25" × 16.75"
(41.3cm × 31.1cm × 42.5cm)
