Persona 9H
Hybrid Floorstanding Loudspeaker, with Four 8.5” Active Bass Drivers & Anthem Room Correction (ARC™)
Persona 9H, the flagship of the Persona Series, is the best- sounding loudspeaker we have ever conceived.
Persona 9H features Truextent® Beryllium 1” tweeter and 7” midrange drivers, each with perforated phase-aligning lenses. This passive mid and high frequency section delivers more accurate wide-spectrum dynamics (from a detailed well-blended 40kHz down to a deep 500Hz) while remaining virtually transparent; your audio alone takes center stage.
The powered bass section utilizes our Ultra- High-Excursion Differential Drive 8.5” woofers in a balanced vibration-canceling configuration (two front-firing, two rear-firing). Each woofer pair is powered by a separate DSP-controlled 700 W RMS amplifier for a total of 1,400 W RMS (2,800 W Dynamic Peak), and combined with exclusive technology like Anthem Room Correction (ARCTM) capability for precise optimization of bass performance for any listening environment.
Technical Specifications:-
Design:
6-driver, 3-1/2 way hybrid floorstanding with active bass acoustic suspension
Crossover:
3rd order electro-acoustic at 2.4 kHz (tweeter/mid), 3rd order @ 400 Hz (mid/front bass), 2nd order @ 200 Hz (rear bass)
Amplifier:
Each woofer pair is powered by a separate DSP-controlled 700 W RMS amplifier for a total of 1,400 W RMS (2,800 W Dynamic Peak)
Room Correction:
Anthem Room Correction - ARC™, with included calibrated microphone
Frequency Response
On-Axis:
±2dB from 19 Hz - 45 kHz
Frequency Response
30° Off-Axis:
±2dB from 19 Hz - 20 kHz
High Frequency Driver:
1" (25mm) Truextent® Beryllium dome, ferro-fluid damped / cooled, Perforated Phase-Aligning (PPA™) Tweeter Lens, Finite Element Analysis (FEA) optimized pole piece assembly
Mid/Bass Frequency Driver:
7" (178mm) Truextent® Beryllium driver with Inverse Differential Drive Neodymium motor, Perforated Phase-Aligning (PPA™) Lens, SHOCK-MOUNT™ Isolation Mounting System, 1.5" high-temp voice coil
Low Frequency Driver:
Four 8-1/2" (215 mm) ultra-high-excursion X-PAL™ drivers with Differential Drive motor, overmolded Active Ridge Technology (ART™) surrounds, SHOCK-MOUNT™ Isolation Mounting System, 1.5" high-temp dual voice coil
Low Frequency Extension:
15 Hz (DIN)
Sensitivity
Room / Anechoic:
96 dB / 93 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15 - 500 watts
Maximum Input Power:
400 watts
Finishes:

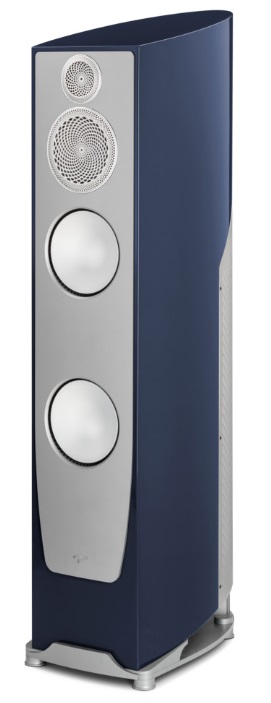

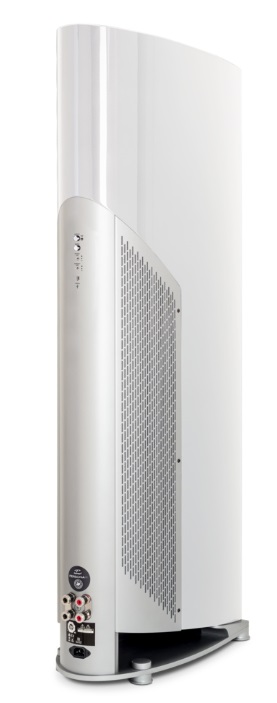

High Gloss: Vanta Black, Harmony White

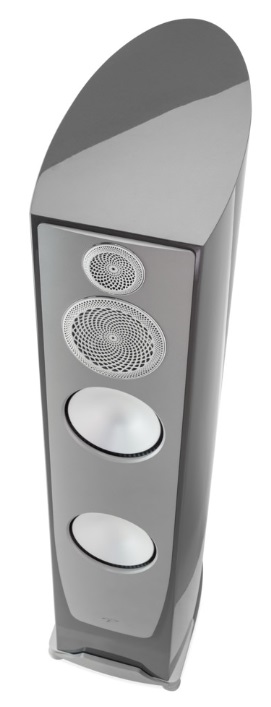

Metallic Gloss: Aria Blue, Sonic Silver
Weight:
190 lbs. (86 kg)
Dimensions
HxWxD:
51.75" × 11.875" × 20.5"
(132cm × 30cm × 52cm)
