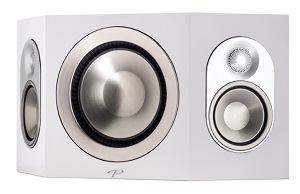

Prestige 25S Surround Channel Speaker
Prestige 25S surround channel speakers utilize 3-way crossover technology for a center-situated, rear-mounted, combination Tweeter-Mid Module that eliminates comb-filtering effects for more consistent off-axis performance and ultra-realistic high frequency details.
Quick Specs
◾Two 1" X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Finite Element Analysis (FEA) optimized pole piece assembly.
◾Two 3.5" X-PAL™ brushed pure-aluminum midrange driver with SHOCK-MOUNT™ Isolation Mounting System.
◾6.5" X-PAL™ brushed pure-aluminum bass drivers with overmolded ART™ surrounds and SHOCK-MOUNT™ Isolation Mounting System.
v
Technical Specifications:-
Design:
5-driver, 3 way surround channel
Crossover:
2nd order electro-acoustic at 2.0 kHz (tweeter), 2nd order @ 600Hz (bass)
Frequency Response On-Axis:
±2dB from 125 Hz - 20 kHz
Frequency Response 30° Off-Axis:
±2dB from 125 Hz - 17 kHz
High Frequency Driver:
1" (25mm) X-PAL™ dome, ferro-fluid damped / cooled, Perforated Phase-Aligning (PPA™) Tweeter Lens, Finite Element Analysis (FEA) optimized pole piece assembly
Midrange Frequency Driver:
Two 3.5" (89mm) X-PAL™ drivers, SHOCK-MOUNT™ Isolation Mounting System
Low Frequency Driver:
6.5" (165mm) X-PAL™ driver, overmolded Active Ridge Technology (ART™) surround, SHOCK-MOUNT™ Isolation Mounting System, 1.5" high-temp voice coil
Low Frequency Extension:
65 Hz (DIN)
Sensitivity Room / Anechoic:
91 dB / 88 dB
Impedance:
Compatible with 8 ohms
Suitable Amplifier Power Range:
15 - 180 watts
Maximum Input Power:
130 watts
Finishes:
Black and White
Weight:
17.6 lbs. (8 kg)
Dimensions HxWxD
Includes plinth, feet, grille and terminal cups:
8.875" × 16.375" × 7"
(22.5cm × 41.6cm × 17.8cm)
