Shift Soundtrack 2 System
Next-Generation Powered Soundbar & Wireless Subwoofer System
Bluetooth with aptX coding
allows high-quality audio streaming from any room in the house.
A fabulous 2.1 channel system with Paradigm Virtual Surround offers an immersive surround-sound experience. Action packed movies? Multichannel music? Turn on Movie Mode to get the mesmerizing impact of Dolby Digital material. Switch to Music Mode for a classic 2-channel experience. Bluetooth capability. Stream from a mobile phone or other portable device and charge the device from another room while continuing playback and control from Soundtrack 2’s remote or top-panel controls. Easy-to-use remote boasts a superb fit and finish.
V

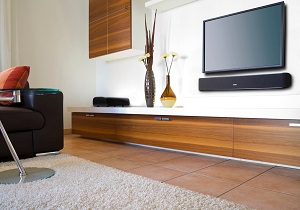

Great sound, anywhere! The Soundtrack 2 System is perfect in a main room but it’s equally ideal in smaller spaces and secondary rooms ... think family room, bedroom, den, home office, kids’ dorm room at school or even the board room!
Technical Specifications:-
SOUND BAR:
Design:
2 isolated, identical channels for Left and Right. Left Channel: 2-driver, 2-way plus single passive radiator. Right Channel: 2-driver, 2-way plus single passive radiator. Molded ABS enclosure with matte finish.
Crossover:
3rd-order electro-acoustic at 2.4 kHz.
Amplifier:
2 x 25 watts of RMS power and 2 x 50 watts peak power.
Frequency Response On-Axis:
±2 dB 140 Hz – 20 kHz
Frequency Response 30° Off-Axis:
±2 dB 140 Hz – 20 kHz
High Frequency Driver:
1 x 25-mm (1 in) S-PAL™ satin-anodized pure-aluminum dome tweeter (per channel).
Midrange Frequency Driver:
1 x 102-mm (4”) mineral-filled polypropylene cone, 37-mm (1-1/2”) voice coil (per channel).
Passive Radiators:
1 x 102-mm (4”) mineral-filled polypropylene (per channel).
Low Frequency Extension:
105 Hz (DIN)
Sensitivity Room / Anechoic:
88 dB / 85 dB
Finishes:
Black
Inputs:
Fibre-optical digital; RCA to RCA; auxilliary; Bluetooth
Weight:
7.4 lbs. (3.4 kg)
Dimensions HxWxD
Including snap-in feet:
5.3125" × 36.375" × 2.9375"
(13.5cm × 92.4cm × 7.5cm)
Accessories
Included:
Snap-in stability feet and screws; on-wall bracket.
WIRELESS SUBWOOFER (with wired option):
Design:
Single driver, bass-reflex design. Ports are arranged perpendicularly to achieve the low-profile design. Built-in amplifier. Molded ABS enclosure with matte finish.
Amplifier:
100 watts of RMS power and 250 watts peak power.
Low Pass Filter Frequency:
130 Hz fixed
Low Frequency Driver:
210-mm (8 in) reinforced mineral-filled polypropylene cone, 38-mm (1-1/2 in) voice-coil.
Low Frequency Extension:
40 Hz (DIN)
Finishes:
Black
Weight:
12.5 lbs. (5.7 kg)
Dimensions HxWxD:
Cradle adds 3/4-in / 1.90 cm to height.
Feet add 1 in / 2.5 cm to height in horizontal position:
14.1875" × 18.3125" × 6.3125"
(36.0cm × 46.5cm × 16.0cm)
Accessories
Included:
Vertical floor cradle; feet and screws for horizontal placement
