HTP-075

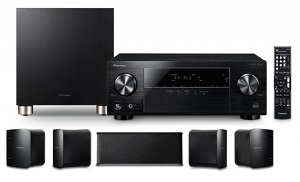

5.1 HDMI 3D AV Receiver with 4K Pass Through, Bluetooth, HD Audio and Speaker Package
This package comes with a 5.1-channel AV receiver, 5 compact speakers and a subwoofer. Just connect your Blu-ray Disc player or DVD player and enjoy quality sound for your home entertainment. Featuring 4 HDMI inputs and Ultra HD (4K/60p/4:4:4) pass-through with HDCP 2.2, the HTP-074 supports the latest video standards HDR. You can also enjoy audio streaming from compatible devices with the built-in Bluetooth® Wireless Technology.
Audio Features:
AV-Receiver:
■Channels: 6ch (5 + SW)
■Amplification Type: Direct Energy
■100 W/ch (6 ohms, 1 kHz, THD 0.7 %, 1ch Driven)
■Dolby® TrueHD/Dolby Digital Plus/Dolby Pro Logic II
■DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS Neo:6
■DTS-Express/DTS 96/24
■DSD Disc (SACD) Playback via HDMI (2.8 MHz)
■Digital Core Engine with Texas Instruments Aureus™ DSP
■192 kHz/24-bit DAC
■HDMI Audio Return Channel (ARC)
■Phase Control
■Pioneer Sound Enhancements
• Advanced Sound Retriever (2ch)
• Auto Level Control (2ch)
• Midnight
• Loudness
■Advanced Surround Modes
• Action, Drama, Advanced Game, Sports, Classical, Rock/Pop
• Front Stage Surround, Extended Stereo
• Phones Surround
• ECO Mode 1, ECO Mode 2
Speaker Set:
■Front: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)
■Centre: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)
■Surround: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)
■Subwoofer: 16 cm Cone, Bass-Reflex Type (100 W)
Video Features:
■Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4)
■HDR Support
■3D Ready (Blu-ray Disc™, Broadcast, and Games)
■Deep Colour (36-bit), “x.v. Colour”
Operating Features:
■Music File Playback via USB (MP3, WMA, AAC)
■Built-in Bluetooth® Wireless Technology (Version: 3.0, Profile: A2DP, Codec: SBC/AAC)
■On Screen Display (HDMI only)
■Auto Power Down
■Power Save for HDMI Standby Through
■AM/FM (RDS) Tuner 30 Presets
■Sleep Timer
■Remote Control
Connections:
Front
■USB 1 In for USB Drive
■Phones 1 Out
Back
■HDMI 4 In/1 Out
■AV (Composite) 2 In
■Audio 1 In (Assignable)
■Digital Coaxial 1 In (Assignable)
■Digital Optical 1 In (Assignable)
■Monitor Composite 1 Out
■Speaker 6 ch Out
■AM Loop Antenna 1 In
■FM Unbalanced Antenna 1 In
Dimensions & Weight:
Dimensions (W x H x D) / Weight:
■AV Receiver: 435 x 168 x 320.5 mm / 7.7 kg
■Front Speaker: 106 x 116 x 106 mm / 0.6 kg
■Centre Speaker: 270 x 100 x 106 mm / 0.8 kg
■Surround Speaker: 106 x 116 x 106 mm / 0.6 kg
■Subwoofer: 285 x 318.5 x 300 mm / 4.0 kg
