Turn your radio station into an audio powerhouse.
With an immense power output of 100 W per channel, the SX-20-K stereo receiver is built to provide massive sound.
You can hook the stereo receiver to a Super Audio player, a network audio player, a recorder, and even to a turntable via the Phono MM terminal.

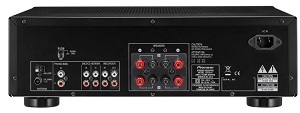

Completely power-driven, the SX-20-K includes large A/B speaker terminals to support two pairs of speakers. Each pair can be set up separately (A / B) or simultaneously (A + B). Bi-wiring is also supported for the optimum clarity in sound quality.
The SX-20-K is also available in Silver.
Specifications:-
Output Power per Channel 100 W + 100 W
Impedance at Output Level -
4-16 Ω (A / B)
• 8-16 Ω (A + B)
• 4-16 Ω (Bi-Wire)
Number of Channels 2
Input Connections
• SACD/CD
• Network
• Recorder
• PHONO (MM)
Output Connections - Recorder
Tuner Pre-set Stations 30 pre-sets
Power output per channel 100 W + 100 W
Condition 20 Hz-20 kHz, THD 1 %, 8 Ω
Rated Power Output THD: 0.02 %, -3 dB, 8 Ω, 1 kHz
Frequency Response: LINE • Phono: 20 Hz-20 kHz, ±0.5 dB (RIAA Eqalisation) MM,
• Line (SACD/CD, Network, Recorder): 5 Hz-100 kHz, 0 dB/-3 dB .
Signal-to-Noise Ratio: LINE (DIN) Line (SACD/CD, Network, Recorder): 100 dB
Phono (MM): 80 dB
dB .
Power Requirements 220-230 V, 50/60 Hz .
Power Consumption (in use / standby) 210 W / 0.3 W
Design - Aluminium Front Panel
Dimensions (W x H x D) 435 x 142.5 x 364 mm
Weight 8.3 kg
