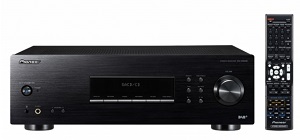

Stereo Receiver with DAB+, UKW/MW Tuner and Phono Input
The direct energy concept from Pioneer with a high-performing 100 watts per channel guarantees a clear and powerful sound from this stereo receiver, and with the DAB/DAB+ tuner it receives crystal clear, interference-free digital radio.
Audio Features:
■Rated Power Output: 100 W + 100 W (20 Hz-20 kHz, THD 1 %, 8 ohms)
■Frequency Response: SACD/CD, NETWORK, RECORDER: 5 Hz-100 kHz, 0 dB/-3 dB
■RIAA Deviation:
- PHONO (MM): 20 Hz-20 kHz, ±0.5 dB
■Tone Control:
- Bass: ±14 dB (100 Hz)
- Treble: ±14 dB (10 kHz)
■Signal-to-Noise Ratio (IHF SHORTED, A-NETWORK):
- SACD/CD, NETWORK, RECORDER: 100 dB
- PHONO (MM): 80 dB
■Total Harmonic Distortion: SACD/CD, NETWORK, RECORDER: 0.02 % or less (1 kHz, 50 W, 8 ohms)
■Tuner Frequency Range:
- (FM): 87.5-108 MHz
- (DAB): 174.928-239.200 MHz
■Antenna Input (FM/DAB): 75 ohms unbalanced
■Analogue Discrete 2ch Amplifier
■DAB/DAB+ Tuner
■FM Tuner (30 Presets) with RDS Function
■Phono Input (MM)
■Speaker A/B Selector
■Two-Digit FL Display
Operating Features:
■Sleep Timer
■Auto Power Down
v
Connections:
■Analogue Audio Input: 4 (Phono MM, SACD/CD, NETWORK, RECORDER)
■Analogue Audio Output: 1 (REC OUT)
■FM/DAB Tuner Antenna
■Large Speaker A/B Terminals
■Speaker Impedance: 4-16 ohms (A or B), 8-16 ohms (A+B)
■Phones Output
■AC Inlet
Other Features:
■Aluminium Front Panel
Dimensions & Weight:
■Dimensions (W x H x D): 435 x 142.5 x 364 mm
■Weight (without Package): 8.3 kg
