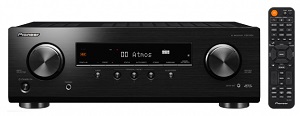

VSX-534
5.1-channel receiver with 5x150 Watt, 4 HDMI Inputs (4K), Dolby Atmos®, DTS:X®, Dolby Atmos Height Virtualizer, MCACC automatic calibration, Advanced Sound Retriever, Bluetooth and USB.
Audio Features:-
■Channels: 5
■Amplification Type: Direct Energy
■150 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
■135 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
■Dolby Atmos®, Dolby Surround Upmixer
■DTS:X®, DTS Neural:X® Upmixer
■Reflex Optimizer
■Dolby Atmos Height Virtualizer*
■DTS Virtual:X
■Dolby® TrueHD, Dolby Digital Plus
■DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express
■DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
■Digital Quad-Core 32-bit DSP (Cirrus Logic)
■384 kHz/32-bit D/A Conversion with AK4438 (AKM)
■Audio Return Channel (ARC) on HDMI
■MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ
■Advanced Sound Retriever (2ch)
■Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Extended Stereo, Extended Mono, Front Stage Surround Advance
Video Features:-
■Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
■HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough
■Dolby Vision Compatible
■Ultra HD Upscaling (1080p to 4K)
■3D Ready (Blu-ray Disc™, Broadcast, and Games)
■Deep Colour (36-bit), “x.v. Colour”
Operating Features:-
■Personal Preset
■Dialog Enhancement
■Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
■User-Friendly GUI with System Setup Menu
■On-Screen Information for Audio/Video Status
■Auto Power Off in HDMI Standby Through
■AM/FM Tuner 40 Presets
■Sleep Timer
■User-Friendly Simple Remote Control
Connections:-
Front Terminals
■MCACC Setup MIC In
■Phones 1 Out
Rear Terminals
■HDMI 4 In (4 Assignable)
■HDMI 1 Out
■USB 1 In for Streaming Dongles
■Audio 3 In (Assignable)
■Digital Coaxial 1 In (Assignable)
■Digital Optical 1 In (Assignable)
■Subwoofer 2 Pre Out
■ZONE B Line Out for Wireless Headphones
■Speaker 5 ch Out (FRONT, CENTER, SURROUND/HEIGHT)
■FM/AM Antenna
Dimensions & Weight:-
■Dimensions (W x H x D): 435 x 148 x 321 mm
■Weight: 8 kg
