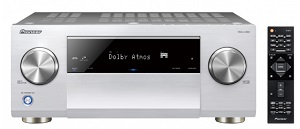

VSX-LX503
9.2-Channel Network AV Receiver with 9x180 watts, Dolby Atmos and DTS:X, DTS Neural:X, 4K Ultra HD, HDR10, 6 HDMI ports, HDCP 2.2, Hi-Res Audio, WiFi, Bluetooth, Flareconnect, Chromecast built-in, Google Assistant
The VSX-LX503 brings you the synergy of Dolby Atmos®/DTS:X ideally calibrated by MCACC, and the latest video standards Ultra HD/HDR10/HLG/Dolby Vision™, and even expands to a 7.2.4ch surround system with an external amplifier. FlareConnect™ offers wireless multi-room audio with easy control on the Pioneer Remote App, while internet radio and network streaming services can be enjoyed with Chromecast built-in and DTS Play-Fi® via your smartphone. Powered Zone 3 offers support for various home cinema environments.
Audio Features:-
■Channels: 9
■Amplification Type: Direct Energy
■180 W/ch (6 ohms, 1 kHz, THD 1 %, 1ch Driven)
■Dolby Atmos®, Dolby Surround Upmixer supports DTS Formats
■DTS:X®, DTS Neural:X® Upmixer supports Dolby Formats
■Reflex Optimizer
■Dolby® TrueHD, Dolby Digital Plus
■DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
■DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2 ch)
■DSD Disc (SACD) Playback via HDMI (5.6, 2.8 MHz/2 ch, 2.8 MHz/5.1 ch)
■Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ Floating-Point DSP (TI)
■384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101 (TI)
■Audio Return Channel (ARC) on HDMI
■MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ
• Multi-point Standing Wave Control
■Advanced Sound Retriever (2ch)
■Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
Video Features:-
■Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit,4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
■HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough
■Dolby Vision Compatible
■Ultra HD Upscaling (1080p to 4K)
■3D Ready (Blu-ray Disc™, Broadcast, and Games)
■Deep Colour (36-bit), “x.v.Colour”
Network Features:-
■Multi Zone Music
■FlareConnect™ for Multi-room Audio
■Chromecast built-in
■Works with the Google Assistant
■DTS Play-Fi with Pioneer Music Control App
■Apple AirPlay Certified
■Amazon Music, Spotify, TIDAL, and Deezer Music-Streaming
■Services Ready
■Internet Radio with TuneIn
■Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD
• Dolby® TrueHD
Operating Features:-
■Powered Zone 3 / Zone2
■Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-in
■Bluetooth® Wireless Technology (Version: 4.1 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
■Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming
■User-Friendly GUI with System/Network Setup Menu
■PC Setup
■Auto Power Off in HDMI Standby Through
■AM/FM Tuner 40 Presets
■Sleep Timer
■User-Friendly Simple Remote Control
Connections:-
Front Terminals
■HDMI 1 In
■USB 1 In for USB Drive
■MCACC Setup MIC In
■Phones 1 Out (Gold-Plated)

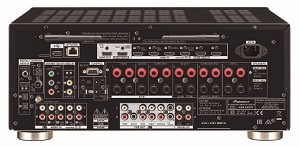

Rear Terminals
■HDMI 6 In (4 Assignable)
■HDMI 2 Out (1 for MAIN, 1 for ZONE 2/SUB)
■Ethernet 1 In
■USB 1 In for USB Drive
■AV (Component) 1 In (Assignable)
■AV (Composite) 2 In (Assignable)
■Audio 1 In (Assignable)
■Phono (MM) 1 In
■Digital Coaxial 1 In (Assignable)
■Digital Optical 2 In (Assignable)
■FRONT, CENTER, SURROUND, HEIGHT 1, SURROUND BACK, SUBWOOFER x 2 Pre Out
■ZONE 2, ZONE 3/HEIGHT 2 Pre/Line Out
■Speaker 11 ch Out (FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP, SURROUND BACK/HEIGHT 2/ZON E 3, ZONE 2)
■IR 1 In/1 Out
■12 V Trigger 2 Out
■RS-232C
■FM/AM Antenna
Dimensions & Weight:-
■Dimensions (W x H x D): 435 x 185 x 386 mm
■Weight: 13 kg
