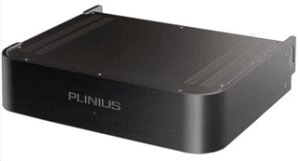

P10 Power Amplifier
The P10 has a level of sophistication rarely found in such a cost effective product. This amplifier has separate input and driver stage power supply regulation and it is an amplifier capable of true high-end performance.
The large toroidal transformer will allow the P10 to deliver power levels in excess of 200 watts per channel into 8 Ohms. Difficult speaker loads are driven with ease to the most satisfying levels, while maintaining control and finesse.
Partnered with the Plinius Kaitaki preamplifier these stable mates will combine to perform at the highest level. The P10 is also highly suited to multiple custom installation use featuring a Home Theatre trigger bypass.
Features:-
Remote Trigger Input:
When connected to a preamplifier trigger output, the amplifier will switch out of Standby and be ready for use when the preamplifier is taken out of standby.
Ground Lift Switch:
This allows for the signal ground to be isolated from the main chassis earth. This can assist in resolving unwanted ground loops or hum due to duplicate ground paths in some systems.
WBT and Neutrik Connectors:
High quality WBT RCA and Neutrik XLR input connectors are fitted along with WBT output speaker terminals to ensure a low distortion interface between your cables and the amplifier.
Auric Wiring:
Audience AV supply the Auric OFC wire used in the input stage of the amplifier. The Auric was chosen for its high workability and natural sound.
AudioQuest Wiring:
AudioQuest X2 is used in the output stage of the amplifier as a high quality link to the speaker connectors.
Technical Specifications:-
POWER
200 watts RMS per channel into 8 ohms.
300 watts RMS per channel into 4 ohms.
Both channels driven from 20Hz to 20kHz at less than 0.2% total harmonic distortion
FREQUENCY RESPONSE
20Hz to 20kHz +/–2dB
-3dB at 5Hz and –3dB at 70kHz
DISTORTION
Typically < 0.05% THD at rated power
0.2% THD and IM worst case prior to clipping
CURRENT OUTPUT
40A short duration peak per channel
Fuse protected
SLEW RATE
50V/µs
HUM & NOISE
90dB below rated output 20Hz to 20kHz unweighted
INPUT IMPEDENCE
47k ohms
GAIN
RCA Inputs: 32dB
XLR Inputs: 38dB
POWER/CURRENT CONSUMPTION
600W
0.4A (92W)
Class AB Idle
0.14A (32W) Standby
DIMENSIONS
Height: 120mm (4 3/4”)
Width: 450mm (17 3/4”)
Depth: 400mm (15 3/4”)
Weight: 14kg (30lbs)
