A/D Box S2 Phono
•Phono stage with analogue-digital converter
•USB output for recording to a computer
•Additional Line input
The A/D Box S2 Phono has been designed as an affordable, effective tool for digitally archiving your precious analogue media.
Being able to take digital audio back-ups of vinyl records or analogue tapes allows you to preserve your precious music, and also take some of your favourite analogue-only tracks with you on the go. By recording to a computer you can also use special software tools to remove unwanted pops, clicks or crackles. The A/D Box S2 Phono achieves this by converting Phono or Line level inputs to a digital USB data stream for a Windows, Apple or Linux computer to handle.

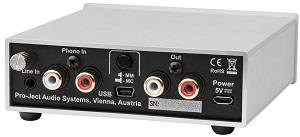

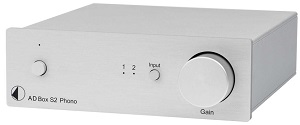

Once a source is connected into the back panel, the input selector on the front panel allows for easy changing between connected devices. At the same time as the music is transferred to USB, it's also possible to continue listening via the RCA analogue outputs - effectively allowing A/D Box S2 Phono to double-up as an input extender for an existing hi-fi system, while also acting as an MM/MC phono stage built on the same design principles as Pro-Ject's coveted Phono Box model.
The Gain control on the front panel is only for the digital data stream. Many computer soundcards struggle with loud audio inputs - the gain attenuator on the A/D Box S2 Phono allows you to adjust this level - striking the best possible balance between convenience and fidelity.
Key Features:-
•Analogue-Digital Converter for recording your analogue media
•Connect a turntable to the phono input
•MM or MC cartridges supported
•Connect an analogue tape player to the line input
•Switch between inputs on the front panel
•Attenuate digital gain level
•Record to a computer via USB
•Ultra-low noise and distortion
•SMD circuitry for short signal paths
•Premium S2 chassis
•Available in black or silver
Technical Specifications:-
Input impedance: MC 100 ohms / MM 47k ohms
Load capacity: 120pF
Gain: MM or high output MC: 40 dB low output MC: 60 dB & Line: 11dB
Signal to noise ratio MM /MC: 94dB / 75dB (A weighted)
THD MM / MC : < 0.01% / < 0.05%
RIAA accuracy: within 0.4dB/20Hz - 20kHz
Analogue inputs: RCA (Phono) / 3.5mm jack (Line)
Analogue output voltage : 9.5V (RCA)
A/D converter: 16-Bit Delta Sigma
Sampling-frequencies: 32, 44, 1 & 48kHz
USB interface : USB1.1, Mini B
Suitable for: Windows, Mac
Power supply: 5V/500mA DC
Power consumption : 100mA DC < 1 watt standby
Dimensions: 103 x 37 x 127mm
Weight 336g (Without PSU)
