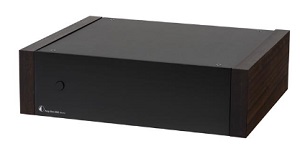

DS2 Mono Power Amp
•Audiophile class D mono power amplifier
•High efficiency from mains to audio power
•Mono amplifiers provide greater sound stage
The Amp Box DS2 Mono is built around a highly efficient, low-energy Class D amplifier module that delivers high output power, giving it the ability to drive even very demanding speakers. This simple yet effective single-channel power amplifier is capable of delivering a very clean, pure sound performance with minimal electrical interferences.
The Amp Box DS2 Mono meets Pro-Ject’s exacting standards for sonic ability, which results in a spacious soundstage that picks up on fine dynamic details and provides plenty of power to fill a typical listening room with sound. The design team took inspiration from tube amplifiers when designing all their amplifiers, resulting in a realistic, musical performance. The sophisticated internal design of the Amp Box DS2 Mono uses a four-layer PCB, which accounts for the noticeable upgrade in sound quality compared to the previous Amp Box DS.
For easy integration into a system, the Amp Box DS2 Mono has two isolated speaker terminals on the back panel, and a Loop Output for passing the audio signal onto another device. The trigger link allows for the amplifier to be turned on when a connected Pre Box DS2 is switched on, making operation even easier. The Amp Box DS2 Mono perfectly complements the DS2 pre-amplifier models, but its sound quality and efficiency also makes them viable for other types of systems.
Key Features:-
•Audiophile class D mono power amplifier
•Impressive signal spectrum and lower distortion
•High efficiency from mains to audio power
•Low heat emission
•Loop output (RCA)
•Isolated speaker outputs
•Trigger input & loop out
•Elegant aluminium - metal sandwich casing
Technical Specifications:-
Power Output: 1x 120W (8Ω)
1x 205W (4Ω)
Frequency Response: 10Hz - 50kHz (+0dB, -3dB)
Channel Separation: > 40dB at 20kHz
THD: < 0.1% at 90W
Gain: 31dB
Pre-amp Input: 2x RCA (Bypass Input-Output)
Input Sensitivity: 550mV (100W, 4Ω)
Input Impedance: 10kΩ
Speaker Output: 4mm Ø Banana
Spade
or Bare Wires
Trigger 12V DC: In & Out, 2-Pole Jack 2.5mm Ø
External Power Supply: 48V / 2.5A DC
Power Consumption: 2.5A DC
Standby Power: < 1W
Dimensions: 240 x 69 x 194mm
Weight (Without PSU): 1.9kg
