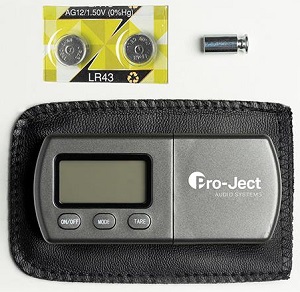

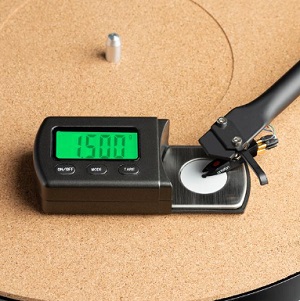

The Measure it E stylus tracking force gauge is a highly accurate electronic balance that is designed for measuring stylus tracking forces up to 5.0g in 0.002g increments. Each Measure it E can easily be calibrated using the supplied calibration weight and by simply pushing a button.
Whenever you’re in doubt about the actual amount of pressure being exerted on your precious cartridge’s diamond tip, the four digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced and you can guarantee the very best sound from your hi-fi system.
Key Features:
•Compact digital stylus gauge
•4 digit LCD-Display with backlight
•Wide capacity 0 - 5g
•Precision data readouts with low variance
•Auto calibration function
•Auto power off after 30 seconds
Technical Specifications:-
Capacity: 0 -5g
Variance: ±0.002g
Weighting Modes:
Gram (1g = 10mN)
Ounce (oz)
Pennyweight (dwt)
Carat (ct)
Display: 4 digit LCD with backlight
Calibration: Auto calibration using a 5g weight
Auto off: 30 seconds
Replacement Battery: 2 x LR43 (AG12) button cells, 1.5V
Operating Temperature: +10 - +30° C
(50 - 86 degrees Fahrenheit)
Dimensions (W x H x D): 96 x 21 x 43mm
Weight: 49g
