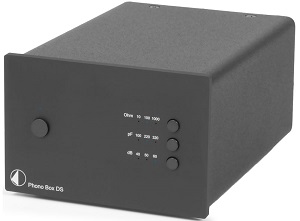

This ultra low noise phono preamplifier benefits from outstanding circuit technology from Dr. Sykora, well-known from Phono Box DS+, in a slimmed version with almost same sound quality, but without display and relais switching at a more favourable price. For the first time nearly all setup options can be made via front panel, what makes circumstantial handling of mini dip-switches or jumpers obsolete. Exceptional performance and flexibility with almost any MM or MC cartridge makes Phono Box DS the best choice in its price class. A subsonic filter, that prevents your amplifier and speakers of ultra low rumble below 20Hz, is positioned on the rear panel. Carefully selected amplifier modules and audiophile-grade capacitors guarantee a breathtaking sound experience. Therefore Phono Box DS is a perfect cost-effective upgrade for most high-quality hifi-systems.
Features:-
• MM and MC capable
• Linear RIAA equalisation
• Ultimate circuit technology from Dr. Sykora, slimplified
version of Phono Box DS+ without display and relais switching
• Ultra low noise and low distortion levels
• SMD circuitry

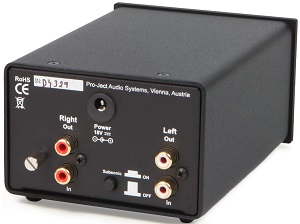

• Subsonic filter (switchable on rear panel)
• Substantial setup options
• Comfortable switching via buttons on front
• Metal casing protects against vibration and interference
• DC power supply (less than 1 watt standby power)
• Faceplate silver or black
Specifications:-
Input impedance 10 / 100 / 1000ohms or 47kohms
Load capacity switchable 47pF 147pF, 267pF, 367pF
(only relevant for MM @ 47kohms)
Gain MM or high output
MC: 40, 50 dB
low output MC: 60 dB
Signal to noise ratio 80dB (A weighted @ 40dB input gain)
THD less than 0,02%
RIAA accuracy within 0,3dB/20Hz - 20kHz
Subsonic 20Hz / - 12dB
Input and Output RCA
Power supply 18V/500mA DC; 220 - 240V, 50Hz
Power consumption 100mA DC less than 1 watt standby
dimensions W x H x D (D with sockets) 103 x 72 x 144 (156)mm
weight 1100g without power supply
