When Power Box RS Phono is connected to Phono Box RS and switched ON, only the accus are connected (adapter and charger are physically disconnected) so Phono Box RS is completely isolated from mains interferences. When accu voltage decreases and reaches certain limits, further playback will be a danger for status of the battery, the charger is automatically connected. This status is indicated by LED on the front panel. Everything continues without any limitation and playback is possible, but the advantage of completely isolating for the charging period is lost. Even if the biggest advantage is temporarily not available, the battery now works as very big filtration bank and the sound is still far better than in case of using the standard power adapter. When accu is fully charged, the charger is disconnected and again Power Box RS Phono powers Phono Box RS only from accu packs.
Features:-
• Purest and cleanest power for Phono Box RS
• Fully isolates Phono Box RS from mains interference and
noise while playback
• Advanced Lithium Polymer battery (one for each channel)
• Playback time approximately 4 hours
• Charging time approximately 4 hours
• Optimised battery life due to intelligent micro-processor
controlled charging electronics

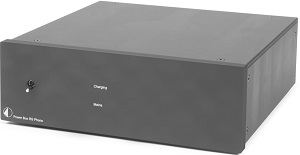

• Status indicator LEDs on front
• Available in silver or black
Specifications:-
Output voltage from +/-14,8V to +/-16,8V,
depends on battery charge level
Battery type and capacity 15 volts Li-ion, 2000mAh (2 pcs.)
Charging time approx. 4 hours
(longer when Phono Box RS in use)
Battery playing time approx. 4 hours

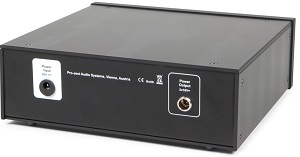

Outboard power supply 20V/3000mA DC
suitable for your country's mains supply
Dimensions W x H x D 201 x 72 x 195mm
Weight 2030g without power supply
