RPM 5 Carbon

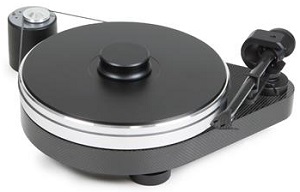

The distinctive design of the RPM 5 continues to live through its latest incarnation, the RPM 5 Carbon. Using the previous building blocks of what made the RPM 5 and 5.1 a greatly revered turntable, now adopts new innovative techniques from its big brother the RPM 9 Carbon.
Each part of the RPM 5 Carbon all cumulates into an unrivalled performer. From the pre mounted 9” carbon fibre evolution tonearm with TPE dampened counterweight vibrations are kept to a bare minimum to guarantee flawless vinyl playback.
v
The new developments on the low resonance chassis which holds a newly designed inverted platter bearing with ceramic ball helps further reduced any rumble. The acoustically inert platter is machined from a large piece of acrylic. The use of acrylic reduces tinny frequencies and helps accentuate the mid-range better.

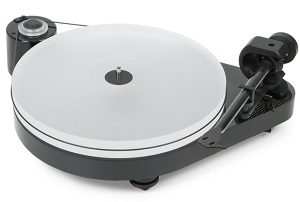

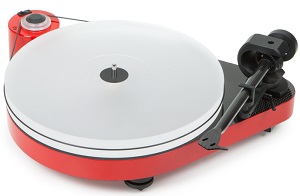

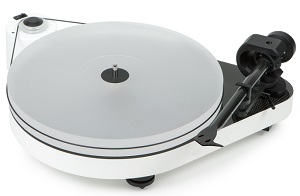

The RPM 5 Carbon’s plinth is topped with carbon fibre and a choice of high-gloss black, white or red finish.
Key Features:
•Precision belt drive principle using synchronous motor
•Ultra-precision DC-driven AC generator motor power
•Inverted platter bearing with ceramic ball
•Acoustical inert acrylic platter
•Comes fitted with 9” cc Evolution tonearm
•TPE dampened counterweight
•Adjustable aluminium tip-toe feet
•Available in 3 high-gloss base colours (black, red, white)
Technical Specifications:-
Speeds: 33/45 RPM
Motor Completely Decoupled: Yes
Effective Tonearm Length: 9" (230mm)
Effective Tonearm Mass: 8g
Overhang: 18mm
Tracking Force: 0 - 25mN
Speed Drift: 33: ± 0.17% 45: ± 0.18%
Wow & Flutter: 33: ± 0.12% 45: ± 0.10%
Signal to Noise: -73dB
Platter Weight / Diameter: 300mm Acrylic
Output Voltage: 15V / 800mA DC
Power Consumption: 5W Max. / < 0.3W Standby
Dimensions (W x H x D): 430 x 150 x 323mm
Weight: 8kg
