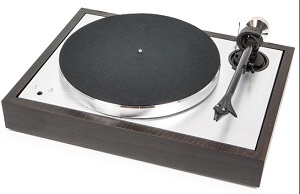

The Classic SB SuperPack - Sub-chassis turntable with 9“ carbon/alu sandwich tonearm
• NEW! Ortofon Qintet Red cartridge pre-installed
• NEW! Electronic speedcontrol (33/45 rpm)
• NEW! Top grade Clamp it included
• NEW! Leather mat included
• Belt drive with electronic speed control 33/45 rpm
• Height adjustable decoupling feet
• Precision balanced TPE*-damped aluminium-platter / felt mat
• Metal/MDF sandwich chassis floating on TPE* suspension
• 9” carbon/aluminium tonearm with MM & MC capability
• Japanese ball bearing (base of tonearm)
• Integrated central vertical cable outlet for unhindered arm movement
• Ultra low friction Zircon pin-point cardan bearings (top & side)
• Azimuth and VTA fully adjustable
• TPE damped counterweight
• Classic wooden chassis in 3 matt finishes (walnut, rosenut, eucalyptus)
• Dustcover included
TPE is a family of modern damping materials which can be tuned to damp resonances at specific frequencies. So any TPE we use is different and specially designed for the material and frequency range it should damp!
The Classic SB Superpack offers classic look and innovative high-end technology
This turntable makes use of traditional frame design which was established by the famous turntable manufacturers of the 50’s and 60’s. It uses a compact simple and elegant form factor. The Classic SB Superpack incorporates a combination of approved belt drive design using a low noise AC motor with an ultra precision frequency DC-driven AC generator for ultimate speed stability. The Classic SB Superpack convinces with high precision dynamics and its rich details. For improved comfort an electronic speed change was built in, which lets you switch from 33 to 45 rpm (and vice versa) with the push of a button. Advanced technology is used for decoupling and the completely new designed tonearm.
Technical Specifications:-
Speed 33, 45 (electronic speed change)
Drive principle belt drive
Platter 300mm aluminium
Mains bearing stainless steel
Wow & flutter 33: ±0,03 % 45: ±0,05 %
Speed variance 33: ±0,10 % 45: ±0,11 %
Signal to noise - 71dB
Tonearm 9” carbon/aluminium sandwich tonearm
Effective arm length 230 mm
Effective arm mass 13,5 g
Overhang 18 mm
Tracking force 10 - 30mN
Included accessories 15 volts DC / 0,8A power supply, dust cover
Power connection 110/120 or 230/240 Volt - 50 or 60 Hz
Power consumption 5 watt max / < 0,5 watt standby
Dimensions 460 x 131 x 351 mm (WxHxD) lid closed
Weight 10,2 kg net
