Quad has always prided itself as providing the complete solution to music lovers. Each Quad component marries perfectly to other parts of the hi-fi system and is designed with one target – to be ‘The Closest Approach To The Original Sound’.
Quad S Series loudspeakers fulfil that objective admirably. Sporting a new ribbon treble unit aligned, through sophisticated crossover networks, to Quad’s advanced bass-midrange drivers, each and every loudspeaker in the range delivers all the nuances and passion of the original performance.
It was way back in the mono days of 1949 that Quad launched its first loudspeaker, the Corner Ribbon. This was, indeed, a prestige product, but it offered something special, a particularly clear and detailed upper mid-range to treble performance from a large and delicate ribbon driver.
The naturalness and fidelity of sound reproduction of the original corner ribbon was championed by the hi-fi press. Both the new S Series and flagship Z Series both have bought influence from this classic speaker, in two new modern speaker ranges taking the delicate and beautiful sound in a more powerful and modern loudspeaker.
Beautifully presented with rounded top edges at the front and rear, each speaker cabinet uses a sandwich construction of alternate layers of MDF and high-density particleboard to reduce panel resonance to below the level of audibility.

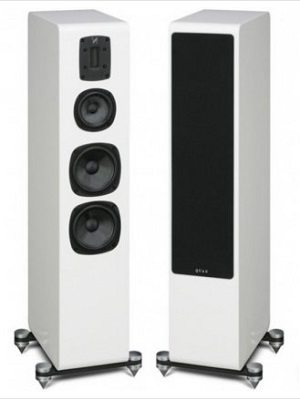

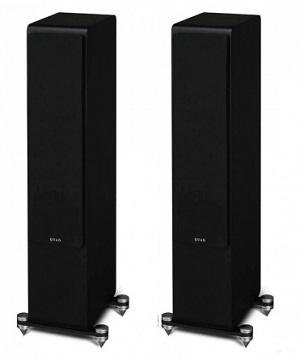

Aesthetically, the look is classically Quad, yet subtly updated, available initially in black or sapele mahogany wood veneers. These will be joined in the autumn by premium, hand-laquered piano white and piano black finish options.
All S Series models sport a bespoke ribbon treble unit, delivering effortlessly extended high frequencies that are audibly superior to those supplied by typical dome tweeters.
While many ribbon drivers are delicate, easily prone to burning out if overpowered, the new ribbon unit developed for the S Series is a thoroughly modern affair, utilising the latest techniques and materials. The ribbon itself is a sandwich construction, making it robust enough to handle high-powered amplifiers, and is fully immersed in a powerful magnetic field so that it accomplishes its dual role of being both the voice coil and sound radiator.
As well as delivering excellent transient response and superb musical detail, the sound from this ribbon unit is smooth right up to the highest musical overtones beyond the limits of human hearing. Controlled directivity maintains this sound quality over a wide horizontal arc to cover all listeners whilst vertical dispersion is tailored to avoid floor and ceiling reflections, resulting in the purest high frequency performance at the listening seat.
The ribbon tweeter is aligned with Quad’s Kevlar-coned bass and midrange drivers through sophisticated crossover networks. While the stand mount models use carefully tuned, rear-firing reflex ports to augment the bass, the floor standers are unusual in incorporating three ABRs (Auxiliary Bass Radiators) in place of a port. These passive, rear-firing bass units support the main drivers to extend bass response down to 35Hz whilst maintaining an accurate and articulate rendition of instrument fundamentals.
Technical Specifications:-
General description: 3-way floorstanding speaker
Enclosure type: ABR
Transducer complement: 3-way
ABR: 125mmx2
Bass driver: 125mm Woven Carbon fibre Cone
Midrange driver: 100mm Woven Carbon Fibre Cone
Treble Driver: 12 x 45 mm True Ribbon
AV shield: No
Sensitivity (2.83V @ 1m): 88dB
Recommended amplifier power: 40-200W
Peak SPL: 100dB
Nominal impedance: 6Ω
Minimum impedance: 3.5Ω
Frequency response (+/-3dB): 44Hz ~ 23kHz
Bass extension (-6dB): 37Hz
Crossover frequency: 520Hz & 3.9kHz
Cabinet Volume (in litres): 47.0L
Dimensions (H x W x D): (870 + 55) x 180 x (300+30)mm
Weight: 16.4kg
