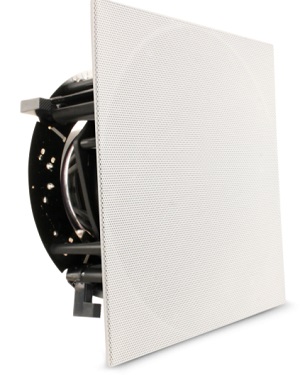

C763
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
Highlights:-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall.
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Technical Specifications:-
Description:
6 ½" In-Ceiling Loudspeaker
High-frequency Driver Components:
1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension:
High Frequency Extension: 3-position HF level control / Low Frequency Extension: LF boundary compensation
Mounting:
C-2 fastening mechanism • Compatible with wall material thickness range: 0.5" – 2.0" (1.3 cm – 5.0 cm)
Height:
Cutout dimensions (dia.): 8" (20.3 cm) Square grille finished Height: 9.1" (23.1 cm)
Width:
Square grille finished Width: 9.1" (23.1 cm)
Depth:
Mounting depth: 4.9" (12.5 cm)
Weight:
2.4 lb (1.1 kg) / Shipping weight: 3.2 lb (1.5 kg)
Features:
Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.): 9.1" (23.1 cm)
