C783
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
Highlights:-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproductionv
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Technical Specifications:-
Description:
8" In-Ceiling Loudspeaker
High-frequency Driver Components:
1" aluminum dome swiveling high-output tweeter with waveguide
Low-frequency Driver Components:
8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Low Frequency Extension:
High Frequency Extension: 3-position HF level control / Low Frequency Extension: LF boundary compensationv
Mounting:
C-2 fastening mechanism • Compatible with wall material thickness range: 0.5" – 2.0" (1.3 cm – 5.0 cm)
Height:
Cutout dimensions (dia.): 9.6" (24.4 cm) Square grille finished Height: 10.7" (27.2 cm)
Width:
Square grille finished Width: 10.7" (27.2 cm)
Depth:
Mounting depth: 5.2" (13.2 cm)
Weight: 3.1 lb (1.4 kg) / Shipping weight: 4.1 lb (1.9 kg)
Features:

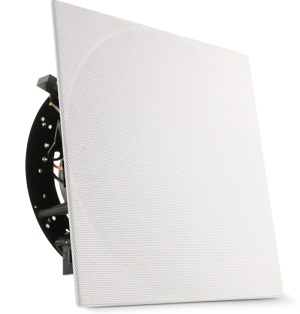

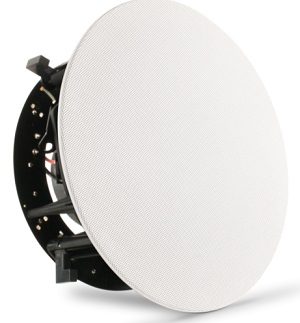

Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.): 10.7" (27.2 cm)
