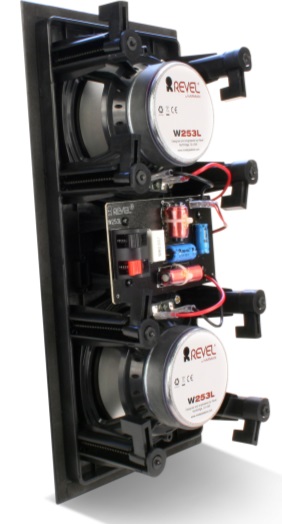

W253L
Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
Highlights:-
Long-throw woofers with rubber surrounds provide high output with low distortion.
1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
High-order crossover network delivers accurate timbre reproduction.
Dual-woofer model (W253L) is ideal for installation as left/center/right speakers with a wall-mounted flat-screen TV.
Technical Specifications:-
Description:
LCR Suitable for Vertical or Horizontal Orientation
High-frequency Driver Components:
1" Aluminum-Dome Swiveling Tweeter with Waveguide
Low-frequency Driver Components:
2 x 5-1/4" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofers
Recommended Amplifier Power:
10W – 130W
Sensitivity:
91dB
Mounting:
Mounting Depth: 3.5" (88mm)
Height:
Grille Finished Dimensions (H x W): 15.1" x 7.4" (18.8cm x 7.8cm); Cutout Dimensions (H x W): 14.1" x 6.4" (35.9cm x 16.3cm)
Weight:
5.6 lb (2.5kg) / Shipping Weight: 7.3 lb (3.3kg)
Features:
C-2 Installation Mechanism; Compatible with Wall Material Thickness Range: 0.5" – 2.0" (1.3cm – 2.5cm)
Optional Accessories:
Preconstruction Bracket and Fire-Rated Back-Box Accessories Available
