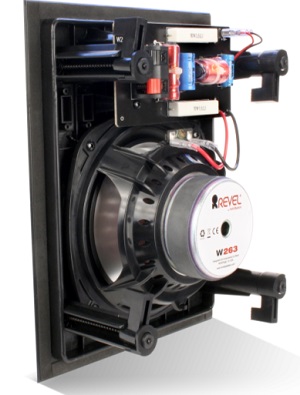

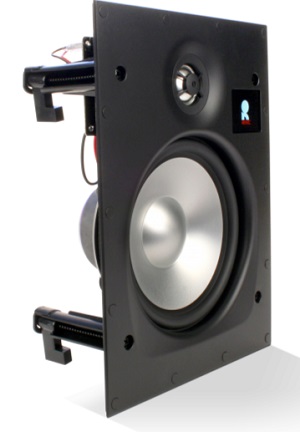

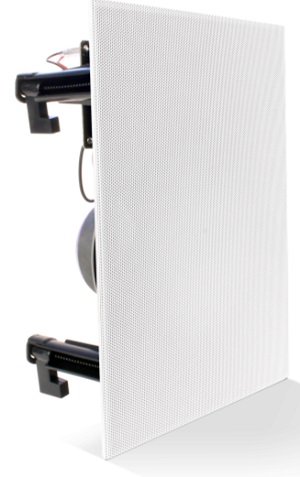

W263
ABOUT REVEL® IN-WALL SPEAKERS
Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
“2-SERIES” IN-WALL LOUDSPEAKER HIGHLIGHTS
• Long-throw woofers with rubber surrounds provide high output with low distortion.
• 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
• High-order crossover network delivers accurate timbre reproduction.
• Dual-woofer model (W253L) is ideal for installation as left/center/right speakers with a wall-mounted flat-screen TV.
Technical Specifications:-
Description:
6 ½" In-Wall Loudspeaker
High-frequency Driver Components:
1" Aluminum-Dome Tweeter with Waveguide
Low-frequency Driver Components:
6-1/2" Aluminum Cone, Cast-Polymer Frame Woofer
Recommended Amplifier Power:
10W – 100W
Sensitivity:
88dB
Mounting:
Mounting Depth: 3.5" (89mm)
Weight:
3.4 lb (1.5kg) / Shipping Weight: 4.9 lb (2.2kg)
