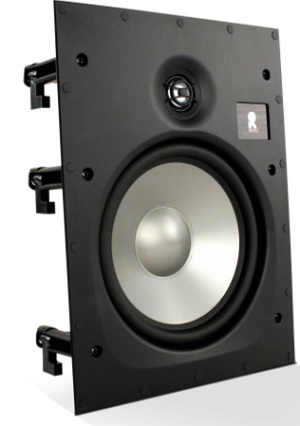

W383
This entirely new range of in-wall loudspeakers combines Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek look that integrates easily into any décor.
Highlights:-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

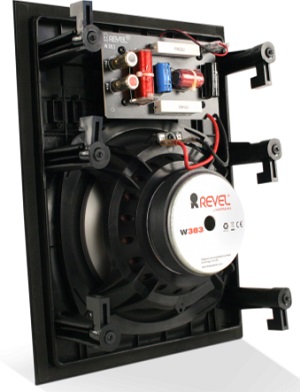

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Technical Specifications:-
Description:
8" In-Wall Loudspeaker
High-frequency Driver Components:
1" aluminum dome swiveling tweeter with waveguide
Low-frequency Driver Components:
8" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
Mounting:
C-2 mounting mechanism • Compatible with wall material thickness range: 0.5" – 1.0" (1.3 cm – 2.5 cm)
Depth:
Mounting depth: 3.7" (9.4 cm)
Weight:
4.9 lb (2.2 kg) / Shipping weight: 6.3 lb (2.9 kg)
Features:

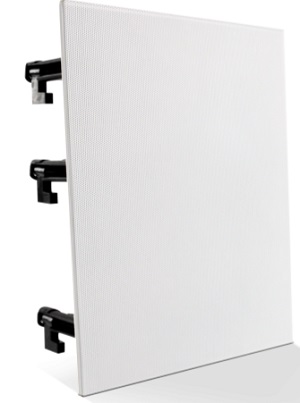

Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
