W873
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
Highlights:-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.

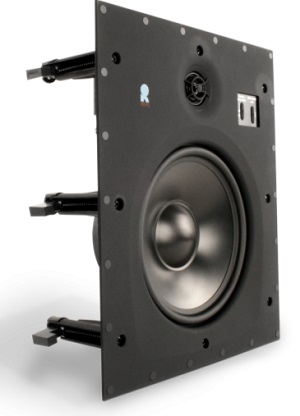

1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Technical Specifications:-
Description:
7" In-Wall Loudspeaker
High-frequency Driver Components:
1" aluminum dome swiveling high-output tweeter with waveguide
Low-frequency Driver Components:
7" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Crossover Frequencies:
Advanced high-order crossover network
Low Frequency Extension:
High Frequency Extension: 3-position HF level control / Low Frequency Extension: LF boundary compensation
Mounting:
C-2 fastening mechanism • Compatible with wall material thickness range: 0.5" – 2.0" (1.3 cm – 5.0 cm)
Depth:
Mounting depth: 3.7" (9.4 cm)
Weight:
7.5 lb (3.4 kg) / Shipping weight: 9.0 lb (4.1 kg)
Features:

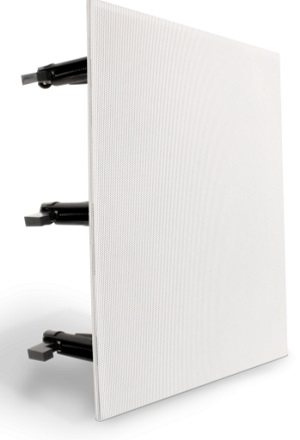

Cutout dimensions (H x W): 12.1" x 10.2" (30.6 cm x 25.9 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W): 13.0" x 11.1" (33.0 cm x 28.2 cm)
