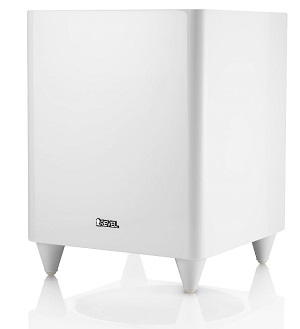

B8
The B8 features an 8-inch down-firing cone transducer and built-in high-performance 200-watt amplifier for impactful and memorable sound quality deserving of the Revel name. The B8 is available in two automotive-grade, high-gloss finishes – white and black – for stylish and elegant appearance.
The wireless transmitter and space-efficient design allow you to place it anywhere in your room without having to run a cable to it. Add a B8 to your M8 SP2 and SP5 Satellite Packages for a complete, multi-channel Revel home theater system at unprecedented affordability. The B8 can also be used to complement your Revel Concerta2 and Architectural Series loudspeakers.
Technical Specifications:-
Low Frequency Transducer:
8-inch (200mm) Down-firing Cone
Amplifier Power:
200 Watts (continuous), 400 Watts (peak)
Frequency Response:
45Hz – 200Hz
Controls:
Volume, Phase, Base Boost
Connections:
LFE (RCA-type); left and right line-level (RCA-type)
Enclosure Type:
Sealed
External Trigger Input Voltage:
3-30 Volts, AC or DC
Subwoofer Power Requirement:
120V, 60Hz (USA), 220V – 240V, 50/60Hz (EU)
Subwoofer Power Consumption:
< 0.5W
Subwoofer Dimensions (H/W/D):
13 29/32” x 10 ½” x 10 ½” (353mm x 267mm x267mm)
Subwoofer Weight:
19.8 lbs (9kg)
Transmitter Power Requirement:
100 – 240V AC, 50/60Hz
Transmitter Power Consumption:
< 0.5W
Transmitter Unit Dimensions (H/W/D):
1 3/8” x 5” x 3 1/2” (35mm x 127mm x 89mm)
Transmitter Unit Weight:
0.26 lbs (117g)
Transmitter Frequency Range:
2403 – 2472mHz
Max Transmitting Power:
10dBm
