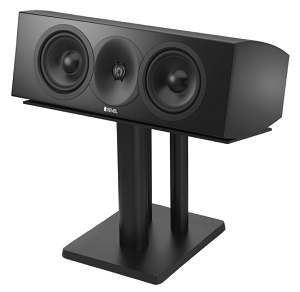

C25
The Concerta2 C25 center channel loudspeaker was designed to deliver outstanding accuracy over a remarkably wide frequency range. The 2-way 5.25” center channel loudspeaker has the ability to provide performance worthy of the most demanding entertainment systems.
The C25 is a true full range 2-way 5.25” center channel loudspeaker that was designed to be the true acoustical anchor for the entire system. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.
High frequency response is supported by 1 inch aluminum dome tweeters that were derived from Revel’s Performa3 series. Low/Mid range frequency response is supported by 5.25” Aluminum cone woofers featuring low-distortion motor-structures for greater clarity and accuracy with improved sensitivity and output capability.
The patented wave guide design improves tweeter to woofer blend and significantly improves off-axis response for consistent performance over a wide listening area. In doing this we sacrificed no details by making sure no fasteners were visible allowing the speaker to show enhancing smooth lines of the cabinet and magnetically attached grilles. To finish the enclosure we selected high gloss black and white finishes to highlight the features of this beautiful speaker.
Highlights:
Derived from Revel’s award-winning Performa3 Series Loudspeakers
5.25"deep anodized aluminum cone woofers
1" Aluminum Tweeter
Fourth generation Acoustic Lens waveguides
Computer optimized driver positioning and network integration
No visible fasteners on the front, top or side panels
Magnetic grilles with brushed metallic logos
High-gloss Black and High-gloss White painted finishes
Technical Specifications:-
Description:
2-way Dual 5.25" Center Channel Loudspeaker
Crossover Frequencies:
2.1kHz
Enclosure Type:
Sealed
High-frequency Drive Components:
1" Aluminum Tweeter with Acoustic Lens Waveguide
Nominal Impedance:
6 Ohms
Input Connections:
Five-way binding posts
Low Frequency Extension:
80Hz, 68Hz, 48Hz (-3 dB, -6 dB, -10 dB)
Low-frequency Drive Components:
2 x 5.25" Aluminum Cone Woofer
Recommended Amplifier Power:
40-120W
Sensitivity:
89dB (2.83V @ 1M)
Dimensions:
7.25" x 19.45"x 10.1" (18cm x 49cm x 27cm)
Weight:
20 lbs
