M106
HIGH GLOSS WALNUT - SPECIAL ORDER ITEM

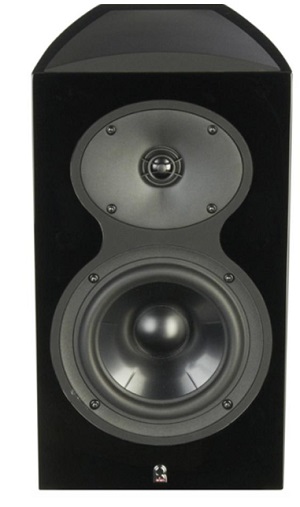

Performa3 bookshelf loudspeakers are true full-range loudspeakers that blend-in easily with your existing décor. They deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.
Revel M106 low-frequency transducers feature distortion reduction mechanisms that stabilize the flux field during operation, assuring low distortion even at high listening volumes. These precision transducers utilize ribbed aluminum cones for ideal piston-like behavior that eliminates a major source of resonances that are clearly audible in most other loudspeakers. Their cast aluminum frames eliminate another source of resonances that is common in many lesser-quality loudspeakers.
These loudspeakers employ a sophisticated fluid-model designed low-frequency port with identical flares on both ends. This greatly minimizes dynamic compression and port-generated noise, assuring low-distortion low-frequency performance.
The M106 is tweeter has been created around a newly designed motor and dome assembly that sets a new standard of transparency for speakers anywhere near the Performa3’s class. The tweeter’s integrated acoustic lens waveguide is based on a breakthrough mathematical approach that accurately matches the tweeter’s dispersion to that of the low-frequency transducer in the crossover region. This gives the loudspeaker very smooth sound far off-axis – an important contributor to overall sound quality, providing consistent sound over an exceptionally wide listening area. In fact, this new waveguide actually increases the tweeter’s dispersion at higher frequencies.
The M106 is housed in enclosures that are similar to our flagship Ultima2 Series. These fully-curved enclosures are inherently stiffer than conventional box shapes and are formed with contiguous wood layers that prevent splitting. They feature strategically-oriented bracing that eliminates the possibility of enclosure-induced coloration. These beautiful, modern enclosures are finished in high-gloss piano black, high-gloss piano white or genuine American walnut in a process (developed and overseen by Italian luxury cabinet makers) that exceeds automotive finish quality.
The loudspeaker grilles are designed to minimize sonic diffraction or veiling and provide a clean, subtle appearance. The magnetic grille attachment method completely eliminates ugly hardware on the loudspeaker baffle, so if you decide to use the loudspeakers without grilles they will look like they were designed to be used without grilles.
Highlights:-
Transducers feature motor-system distortion-reduction mechanisms that stabilize the flux field during operation
Ribbed aluminum cones achieve piston like behavior eliminating major sources of resonance
New waveguides provide consistent sound over a wide listening area
Enclosures created by Italian luxury cabinetmakers
Fluid-model port designs keep distortion low
Advanced crossovers optimize timbre accuracy both on axis and throughout the room
Technical Specifications:-
Description:
2-Way Bookshelf Monitor Loudspeaker
Crossover Frequencies:
2.3 kHz
Enclosure Type:
Bass-reflex via Rear-firing Port
Finishes:
Piano Black or High Gloss Walnut
High-frequency Drive Components:
1” (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide
Nominal Impedance:
8 Ohms
Input Connections:
Binding Posts
Low Frequency Extension:
10dB@39Hz -6dB@54Hz -3dB@59Hz
Low-frequency Drive Components:
6.5” (16.5 cm) Aluminum Cone, Cast-frame Woofer
Recommended Amplifier Power:
50-150
Sensitivity:
87 dB
Weight:

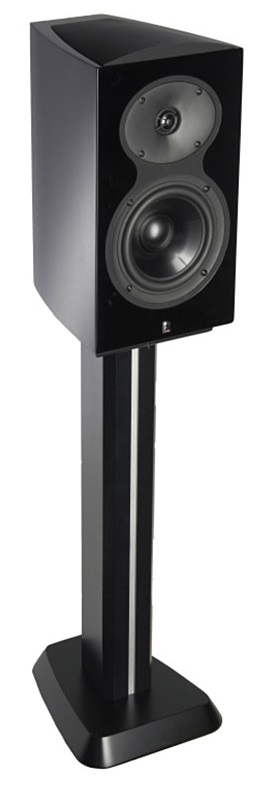

Net Weight: 19 lb (8 kg) Note: Optional Stand Adds 8 lb (4 kg)
Depth:
11" (27.8 cm)
Width:
8.3" (21 cm)
Height:
15" (38.1 cm) Note: Optional Stand Adds 25" (63.5 cm)
