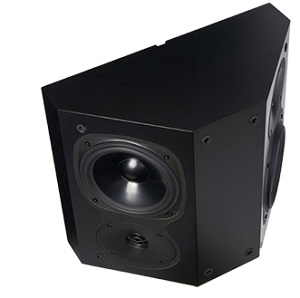

S206
Performa3 S206 surround-channel loudspeaker features smooth, uniform response over a very wide listening area, producing a lifelike surround-sound environment that enhances your entertainment’s realism for multiple listeners.
The speaker’s two sets of transducers operate in a bi-polar configuration, which maximizes the speaker’s timbre match with that of other Revel Performa3 speakers and further integrates the entire system’s sound into a spacious, enveloping surround-sound environment. The S206 tweeters feature an integrated acoustic lens waveguide that is based on a breakthrough mathematical approach that accurately matches the tweeters’ dispersion to that of the low-frequency transducers in the crossover region. This gives the loudspeaker very smooth sound far off-axis – an important contributor to overall sound quality, providing consistent sound over an exceptionally wide listening area. In fact, this new waveguide actually increases the tweeter’s dispersion at higher frequencies.
The S206 enclosure features strategically-oriented bracing that eliminates the possibility of enclosure-induced coloration.
Highlights:-
Transducers feature motor-system distortion-reduction mechanisms that stabilize the flux field during operation
Ribbed aluminum cones achieve piston like behavior eliminating major sources of resonance
New waveguides provide consistent sound over a wide listening area
Enclosures created by Italian luxury cabinetmakers
Fluid-model port designs keep distortion low
Advanced crossovers optimize timbre accuracy both on axis and throughout the room
Technical Specifications:-
Description:
2-Way Surround Loudspeaker
Crossover Frequencies:
1.4 kHz
Enclosure Type:
Sealed
Finishes:
Matte Black
High-frequency Drive Components:
1” (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide
Nominal Impedance:
8 Ohms
Input Connections:
Binding Posts
Low Frequency Extension:
10dB@52Hz -6dB@58Hz -3dB@65Hz
Low-frequency Drive Components:
Dual 6.5” (16.5 cm) Aluminum Cone, Cast-frame Woofers
Recommended Amplifier Power:
50-150
Sensitivity:
89dB
Weight:
Net Weight: 16 lb (7 kg)
Depth:
8.5" (21.6 cm)
Width:
15.8" (40 cm)
Height:
13.5" (34.3 cm)
