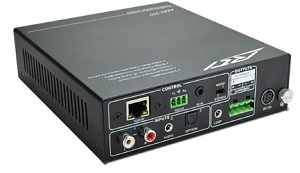

AMR-350 3 x 1 Audio Amplifier
The AMR-350 is a compact-sized Class-D digital amplifier for classroom or meeting room applications requiring switching of three audio sources (e.g., laptops, video conference systems, Blu-ray players).
AMR-350 features two analog audio inputs and one digital optical audio input. The Class-D amplifier powers the connected speakers with 2 x 50 Watts Stereo or 1 x 100 Watts in bridge mode. The loop output can be used to share the same audio sources with multiple AMR-350s that connect more speakers in different audio zones. The AMR-350 can be controlled via RS-232, Ethernet, web interface and the front control panel.
Key Features:-
•Three input, one output audio amplifier.
•Built-in Class-D amplifier
•Power Output: 2 x 50 Watts Stereo (8 Ohms) or 1 x 100 Watts bridged (4 Ohms).
•EQ control (bass / treble).
•Volume knob with LED bargraph.
•RS-232 control.
•Ethernet control
•Web interface control and configuration.
•Audio loop output to share audio sources with multiple amplifiers.
•Compact form factor with noiseless convection cooler.
Technical Specifications:-
Power: +36 VDC, 2.66A
Mounting: Surface / wall mount or free standing
Audio Input:
One Line Input Stereo (RCA jack)
One Line Input Stereo (3.5 mm jack)v
One Digital Optical Input (TOSLINK)
Input Impedance: > 10K Ohms
Audio Output: One Stereo Speaker Output (4-pin terminal block), One Loop Output (3.5 mm jack)
Rated Output Power: 2 x 50 Watts Stereo @ 8 Ohms / 1x100 Watts bridged @ 4 Ohms
Speaker Impedance: 4 to 8 Ohms
Damping Factor: > 100
Frequency Response: 20Hz to 20KHz
Signal-to-Noise Ratio: 80dB at maximum output
Channel Separation: > 75dB @ 20Hz to 20Khz
Voltage Gain: 32dB
CMRR: > 70dB @ 20Hz~20KHz
Total Harmonic Distortion + noise @ 1KHz: 1% at 50 Watts
Front Panel Control: 2 Buttons, 1 Knob for Input Select, Volume and EQ
RS232 Control: One, Bidirectional control (3-pin Phoenix connector)
Ethernet Control Port: One, 10/100Base-T,RJ45 Connection
Operating Temperature: C -10 to +40 degrees F +14 to +104 degrees
Operating Humidity: 5% to 95% Non-condensing
Dimensions WxHxD: 5.82" (148mm) x 1.73" (44mm) x 6.49" (165mm)
Weight: 1.58lb (720g)
Warranty: Three Years (Parts & Labor)
