R320
Indoor 802.11ac Wave 2 2x2:2 Wi-Fi Access Point
Smaller locations can face big-time demands on their wireless infrastructure. Whether working out of a small office or connecting to a public hotspot, users are often still accessing the same high-bandwidth applications and content they’d consume anywhere else. And they expect strong, reliable connectivity.
The R320 provides an ideal combination of features and performance for smaller environments. Additionally, it supports up to 256 clients per AP. Whether you’re deploying ten or ten thousand APs, the R320 is also easy to manage through Ruckus’ appliance, virtual, controller-less and cloud management options.
AFFORDABLE ENTERPRISE PERFORMANCE
The R320 provides great performance with extended range at an affordable price.
KEEP EXISTING SWITCHES AND CABLES
Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly upgrades.
MULTIPLE MANAGEMENT OPTIONS
Manage the R320 from the cloud, with on-premises physical/virtual appliances, or without a controller.
STUNNING WI-FI PERFORMANCE
Extends coverage with patented BeamFlex™ adaptive antenna technology while mitigating interference by utilizing 64 directional antenna patterns.
AUTOMATE OPTIMAL THROUGHPUT
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
MORE THAN WI-FI
Support services beyond Wi-Fi with Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.
WI-FI:-
Wi-Fi Standards
•IEEE 802.11a/b/g/n/ac wave 2
Supported Rates
•802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
•802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15)
•802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
•802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels
•2.4GHz: 1-13
•5GHz: 36-64, 100-144, 149-165
MIMO
•2x2 SU-MIMO
•2x2 MU-MIMO
Spatial Streams
•2 SU-MIMO
•2 MU-MIMO
Radio Chains and Streams
•2x2:2
Channelization
•20, 40, 80MHz
Security
•WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK
•WIPS/WIDS
Other Wi-Fi Features
•WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
•Hotspot
•Hotspot 2.0
•Captive Portal
•WISPr
RF:-
Antenna Type
•BeamFlex adaptive antennas
•Adaptive antenna that provides up to 64 unique antenna patterns per band
Antenna Gain (max)
•Up to 3dBi
Peak Transmit Power (aggregate across MIMO chains)
•2.4GHz: 23dBm
•5GHz: 23dBm
Minimum Receive Sensitivity1
•-101dBm
Frequency Bands
•ISM (2.4-2.484GHz)
•U-NII-1 (5.15-5.25GHz)
•U-NII-2A (5.25-5.35GHz)
•U-NII-2C (5.47-5.725GHz)
•U-NII-3 (5.725-5.85GHz)
NETWORKING:-
Controller Platform Support
•SmartZone
•ZoneDirector
•Unleashed2
•Cloud Wi-Fi
•Standalone
Mesh
•No Mesh support
IP
•IPv4, IPv6
VLAN
•802.1Q (1 per BSSID or dynamic per use based on RADIUS
•VLAN Pooling
•Port-based
802.1x
•Authenticator & Supplicant
Tunnel
•L2TP, GRE, Soft-GRE
Policy Management Tools
•Application Recognition and Control
•Access Control Lists
•Device Fingerprinting
•Rate Limiting
PHYSICAL INTERFACES:-

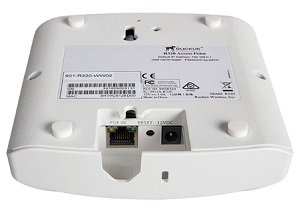

Ethernet
•1 x 1GbE port, RJ-45
PHYSICAL CHARACTERISTICS:-
Physical Size
•13.2(L) x 13.8(W) x 3.1(H) cm
•5.2(L) x 5.4(W) x 1.2(H) in
Weight
•308g (10.9oz)
Mounting
•Wall, Drop ceiling, Desk
•Secure bracket (sold separately)
Physical Security
•Hidden latching mechanism
•Kensington lock
•T-bar Torx
Operating Temperature
•0 ºC (32 ºF) to 40 ºC (149 ºF)
Operating Humidity
•Up to 95%, non-condensing
POWER3:-
Power Supply
802.3af
•12.18W (Maximum Power Consumption)
DC input 12 VDC 1A
•9.15W (Maximum Power Consumption)
